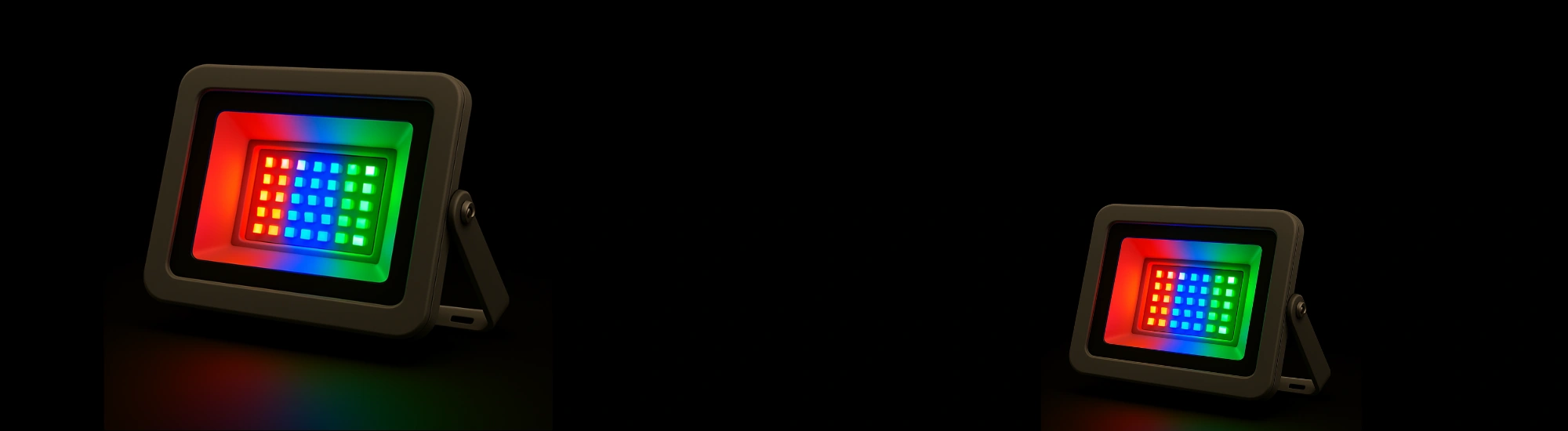

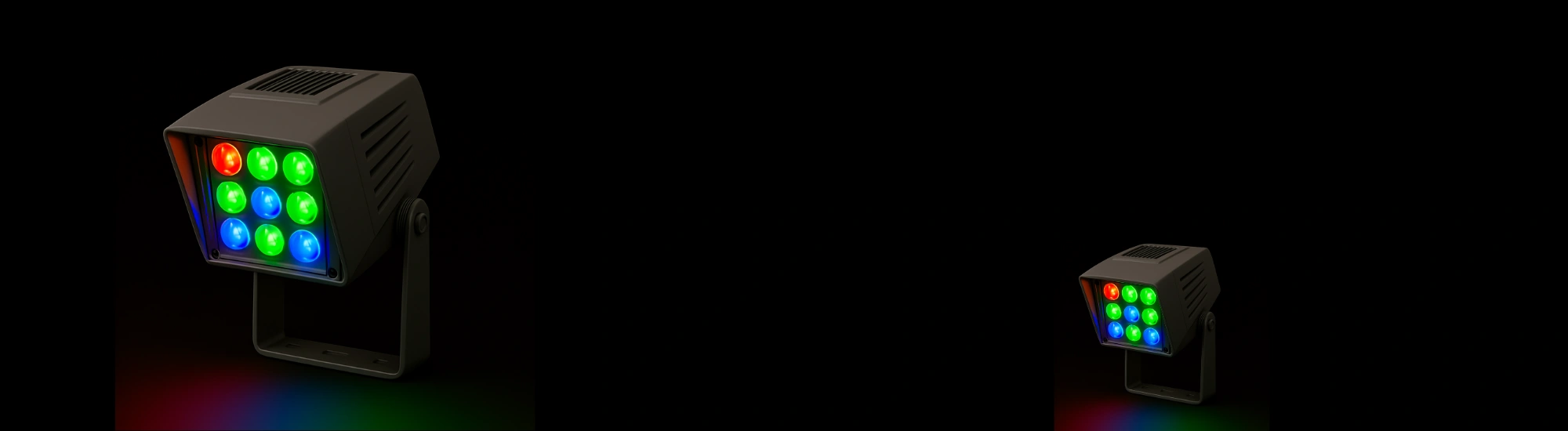

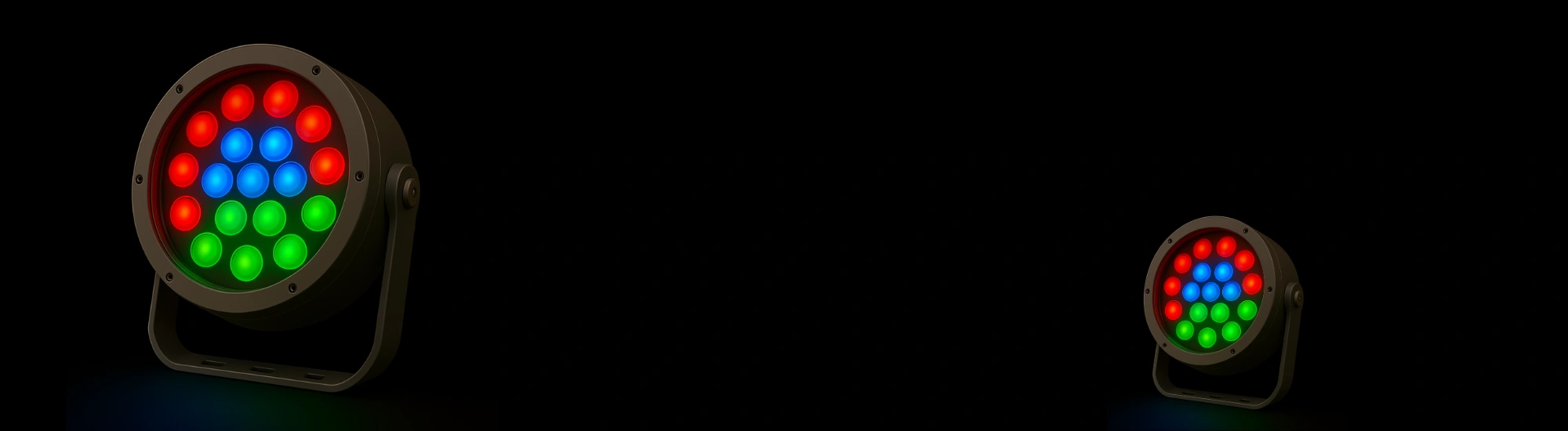

RGB – Pixel – 220V AC Flood Light
AC-powered RGB pixel effects for immersive building lighting and visuals.
Explore FeaturesOverview
For concerts, hotels, malls, or dynamic night scenes.
Product Information
Create pixel-mapped light shows and animations directly on walls or exteriors using this RGB pixel floodlight. No external drivers required; supports DMX/SPI protocols with full-color spectrum.
Gallery
Downloads
Specifications Table
| Feature | Value | Feature | Value |
|---|---|---|---|
| Model | MECR612P-220V | LED Emitter | 0.5W [5730 or 2835] |
| Output Lumens | 100-120LM Per WATT | Operational Voltage | 220V AC (Customized) |
| Wattage | 30W/50W/100W/150W/200W/250W/500W | Colour Temperature | RGB |
| Beam Angle | 10°, 15°, 25°, 30°, 45°, 60°, 90°, 120° | CRI | ≥90 |
| Size | Customized | Control Type | On/Off, 0–10V/PWM dimming, DMX512/RDM |
| IP Rating | IP65, IP66, IP67 | Life Span Time | 50,000 hours |
| Protocol | DMX512,SPI,ArtNET,DALI | Shape | Rectangle / Circle |
| Housing Material | Die-cast aluminum with powder coating | Installation Type | Adjustable bracket mount/pole mount /wall mount |
