RGB – Pixel – 220V AC Ground Light
AC-powered RGB pixel uplight for high-impact color shows.
Explore FeaturesOverview
Best for modern venues, showrooms, or color-responsive architecture.
Product Information
Full-spectrum RGB pixel ground light with addressable LEDs for dynamic outdoor visuals. Works directly on 220V and supports controller-based sequencing, great for creative installs.

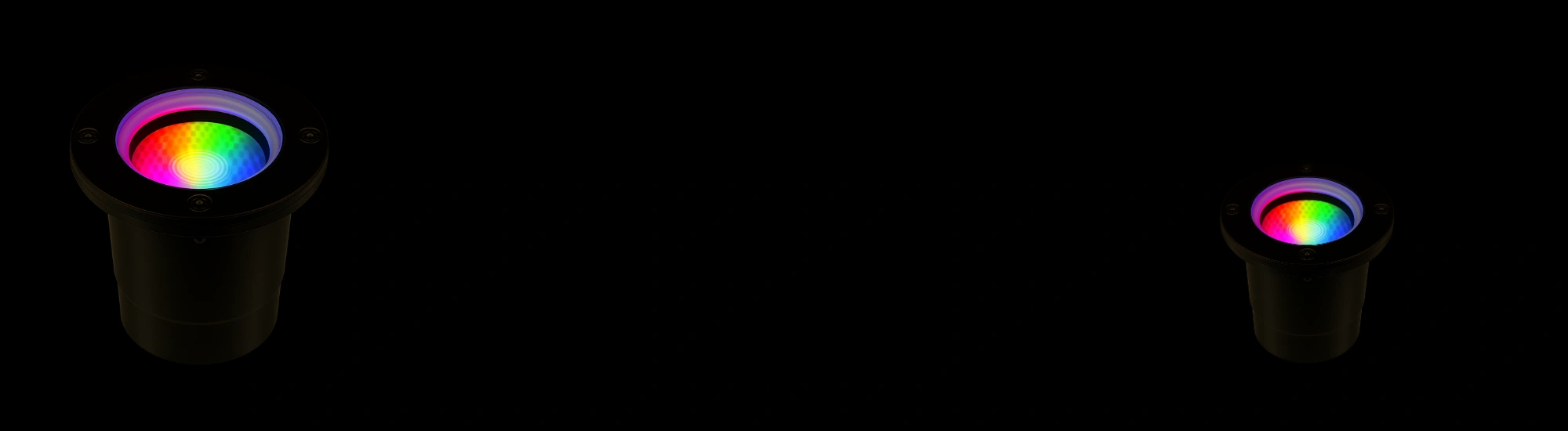

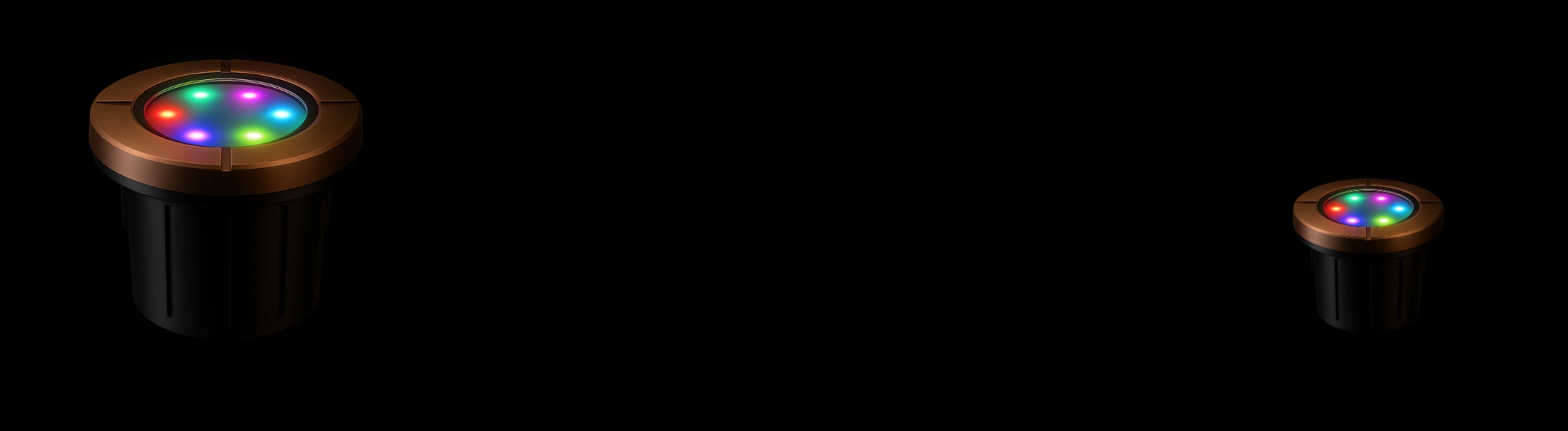

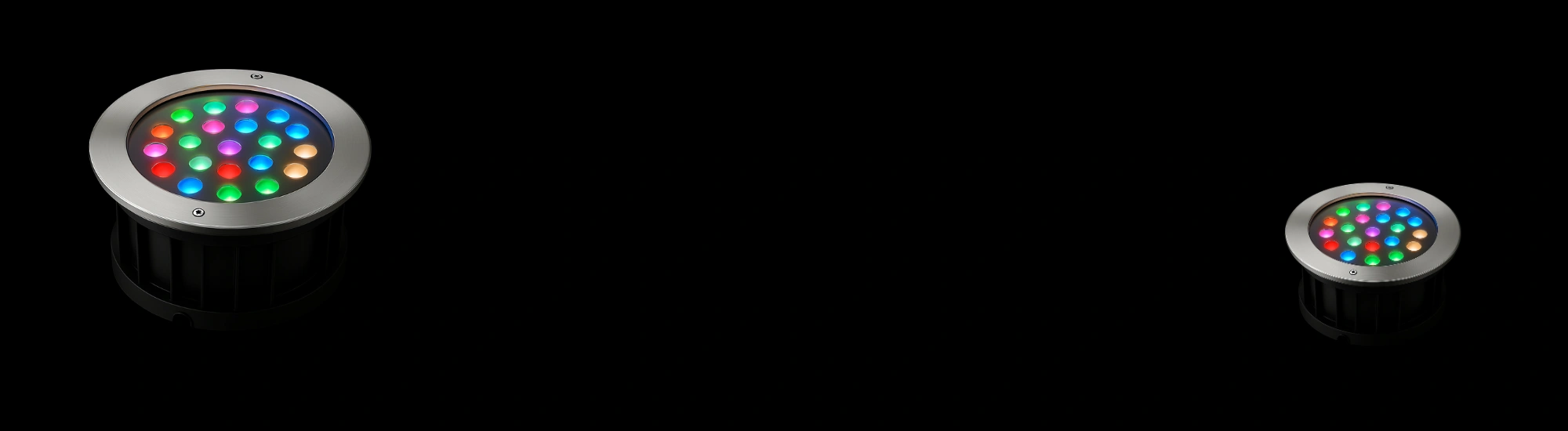

Gallery
Downloads
Specifications Table
| Feature | Value | Feature | Value |
|---|---|---|---|
| Model | MECR187P-220V | Wattage | 7W/12W/18W/20W/24W/30W/36W |
| CCT | RGB | Beam Angle | 8°, 15°, 25°, 30°, 45°, 60° |
| CRI | ≥90 | Protection Rating | IP65, IP66 , IP67 , IP68 |
| Source Code | 5050 | Voltage | 220V AC |
| Protocol | DMX512,ArtNET,SPI,DALI | Operational Temperature | 50°–60°C |
| Lifespan | 50,000 hours | Body Color | White / Black |
| Housing Material | Die-cast aluminum body with stainless steel | Control | On/Off, 0–10V/PWM dimming, DMX512 |
| Installation Type | Recessed ground housing with sleeve | Size(Outer Diameter ) | 60/90/120/150/200 MM (Customized) |
