RGB – Non-Pixel – 24/48V DC Ground Light
Static RGB color options with smooth fades and bright surface wash.
Explore FeaturesOverview
Great for public parks, wall bases, and ambient paths.
Product Information
Delivers consistent RGB output with easy control via 3-channel input. This non-pixel model suits decorative lighting needs where color is key but animation is not required. Waterproof and safe for ground installation.

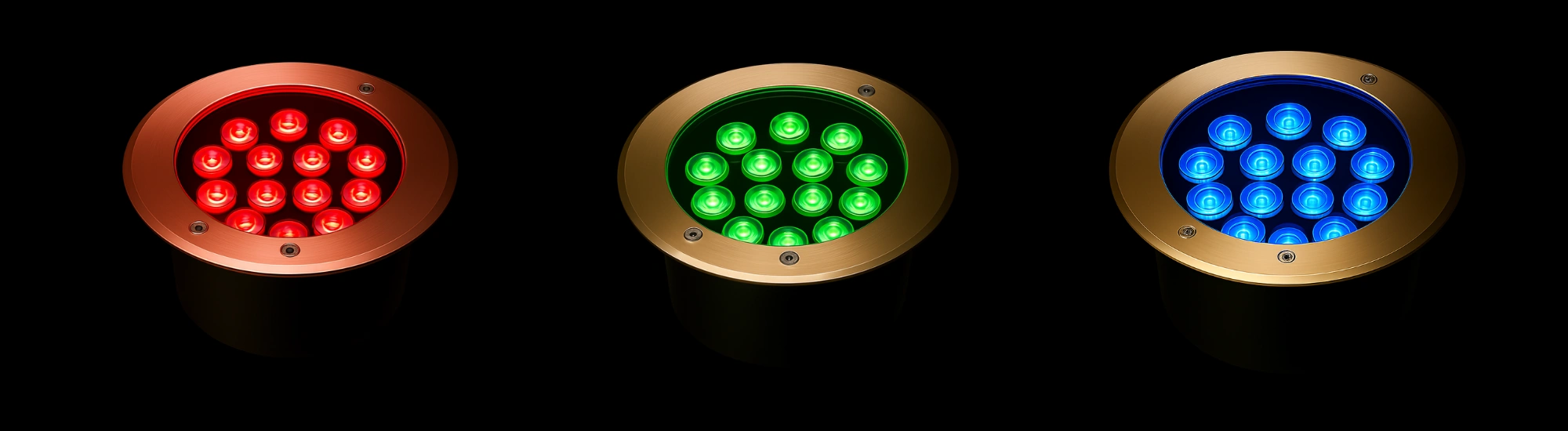

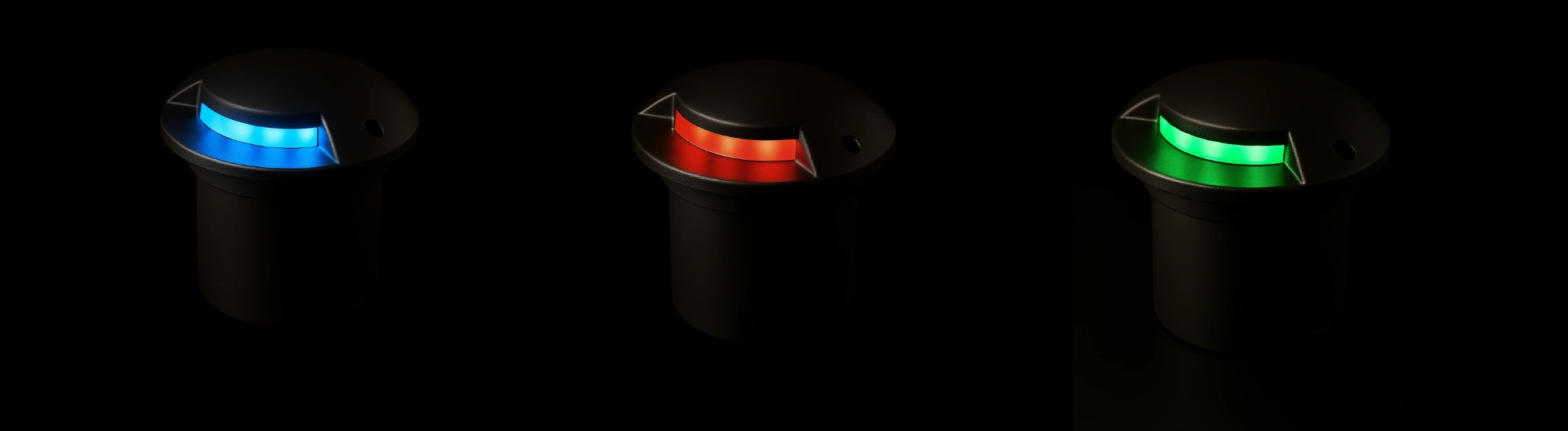

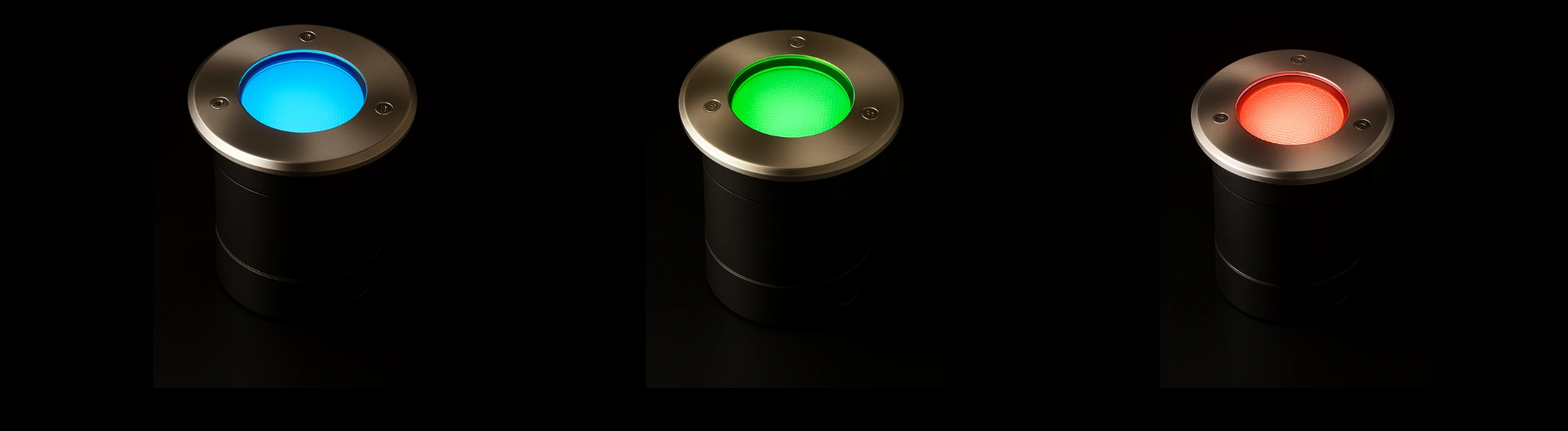

Gallery
Downloads
Specifications Table
| Feature | Value | Feature | Value |
|---|---|---|---|
| Model | MECR187NP-24/48V | Wattage | 7W/12W/18W/20W/24W/30W/36W |
| CCT | RGB | Beam Angle | 8°, 15°, 25°, 30°, 45°, 60° |
| CRI | ≥90 | Protection Rating | IP65, IP66 , IP67 , IP68 |
| Source Code | 5050 | Voltage | 24/48V DC |
| Protocol | NA | Operational Temperature | 50°–60°C |
| Lifespan | 50,000 hours | Body Color | White / Black |
| Housing Material | Die-cast aluminum body with stainless steel | Control | On/Off, 0–10V/PWM dimming, DMX512 |
| Installation Type | Recessed ground housing with sleeve | Size(Outer Diameter ) | 60/90/120/150/200 MM (Customized) |
