24V RGB Pixel LED Bar
Vibrant pixel-controlled RGB effects for signage, events, and media rooms.
Explore FeaturesOverview
This RGB bar delivers full color control across each pixel, making it a must-have for any animated lighting project.
Product Information
The 24V pixel RGB LED bar is built for dynamic color flow and pixel mapping. Using WS2811/WS2815 or similar ICs, it supports chases, gradients, and scene control across the bar. Used widely in events, stage lighting, or interior accent design, it’s compatible with music-reactive and programmable control systems. Durable aluminum casing ensures heat management and longevity.

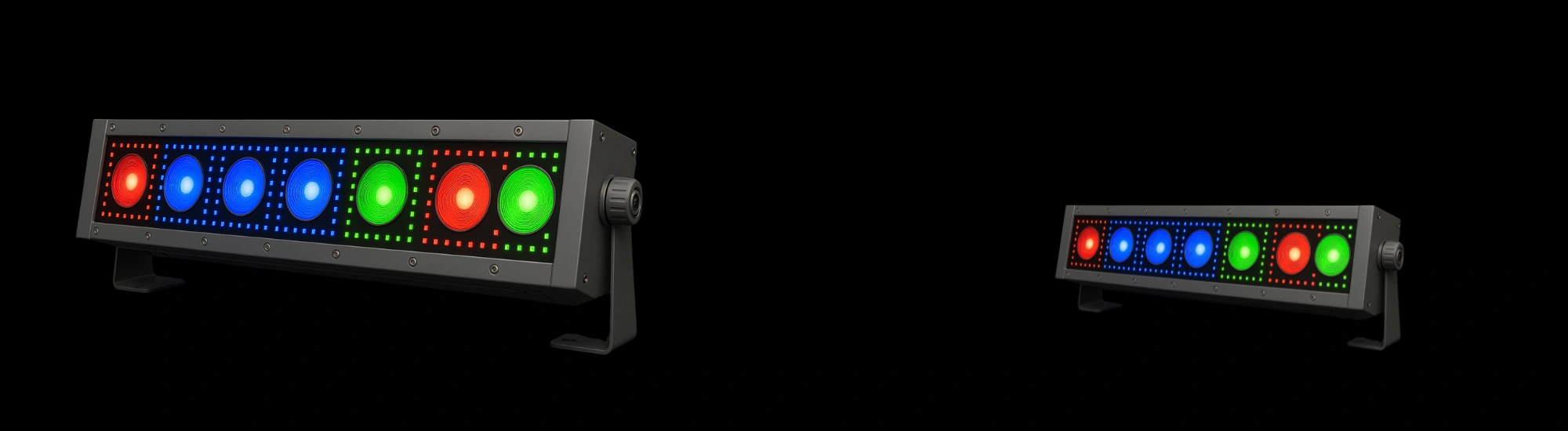

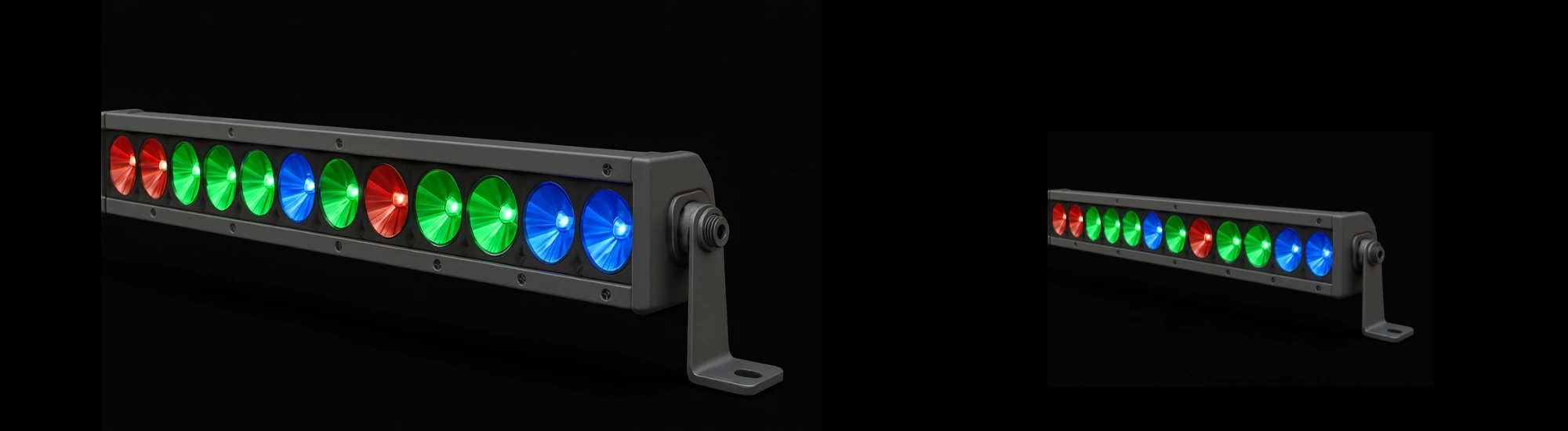

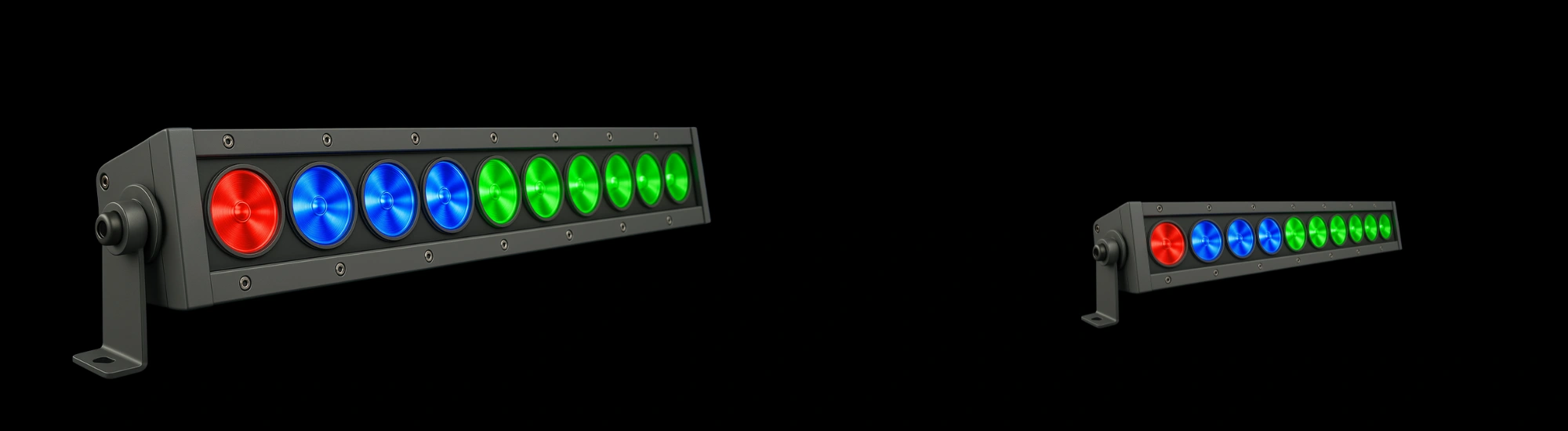

Gallery
Downloads
Specifications Table
| Feature | Value | Feature | Value |
|---|---|---|---|
| Model | MECR122P-24V | Light Source | SMD5050 RGB LEDs |
| LED Quantity | 36 LEDs | Cover | Square Diffuser |
| View Angle | 120° | Pixels Control | 12 |
| Colour Mixing | RGB | Protocols | DMX , SPI , ArtNET |
| Control Channels | NA | Address Setting | Manual |
| Input Voltage | 24V | Power Consumption | 20W/36W/40W |
| Dimensions | 750mm x 28mm x 50mm | Body Colour | Black/White |
| IP Rating | IP65, IP66 | Operating Temperature | 50°C – 60°C |
| Current | 0.60A – 0.625A/MTR | Body Type | Aluminium |
| Lifespan | 50000Hours |
