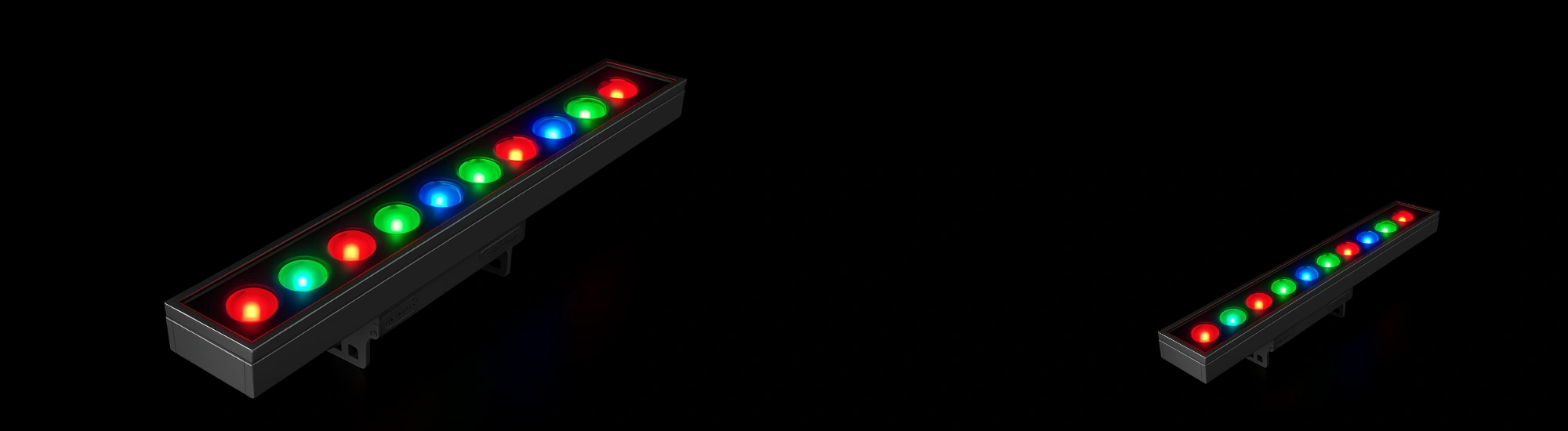

48V RGB Pixel LED Bar
Long-range RGB pixel effects—ideal for outdoor facades, commercial signage, or event lighting.
Explore FeaturesOverview
This bar brings vibrant color control to professional outdoor and indoor setups needing long runs and advanced control.
Product Information
Using 48V for power stability, this RGB pixel bar supports complex animations with programmable control. From gradient chases to synchronized stage effects, it's used in architectural installations and festivals. High-quality components and waterproof options make it suitable for tough environments and extended usage.
Gallery
Downloads
Specifications
| Feature | Value |
|---|---|
| Model | MECR122P-48V |
| Wattage | 14.5W/MTR |
| Input Voltage | 48V DC (Customized) |
| CCT | RGB |
| CRI | ≥90 |
| Beam Angle | 120° |
| Dimensions | 750mm x 28mm x 50mm |
| Led Make | CREE / BLX / LUMI / OSRAM |
| LED Source | 5050 |
| Operating Temperature | 45°-50°C |
| Burning Hours | 40,000 + hours |
| IP Rating | IP65, IP66 |
| Driver | FULLHAM/PHILIPS/BAG |
| Protocol | DMX , SPI , ArtNET |
| Warranty | 5 Years |
| Body Material | Aluminium |
| Current | 0.60A – 0.625A/MTR |
| Control Channels | NA |
| Address Setting | Manual |
| LED Quantity | 36 LEDs |
| Cover | Square Diffuser |
