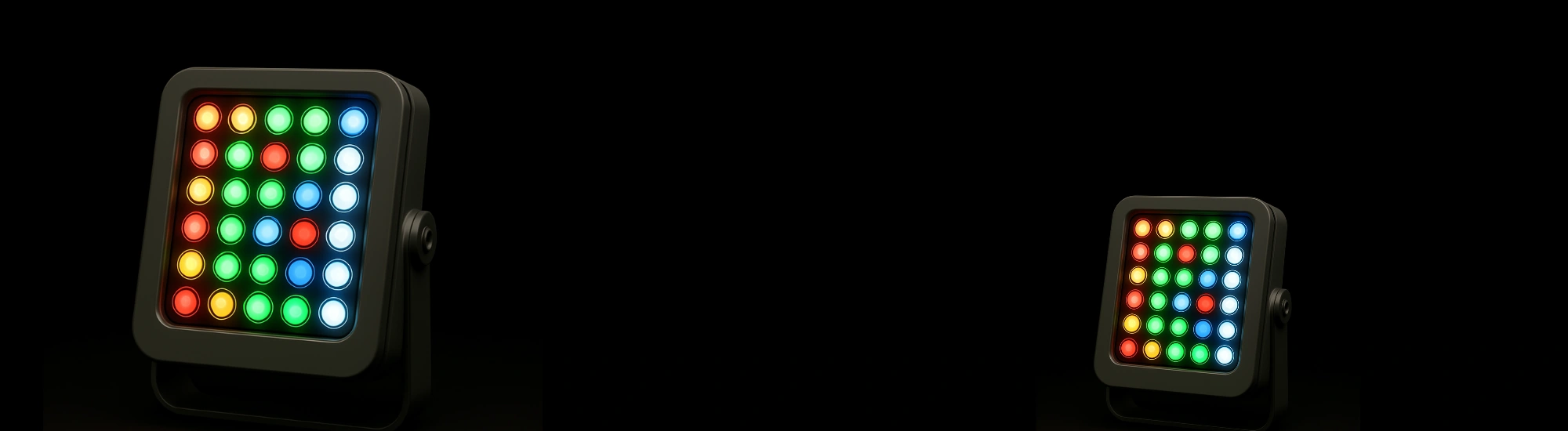

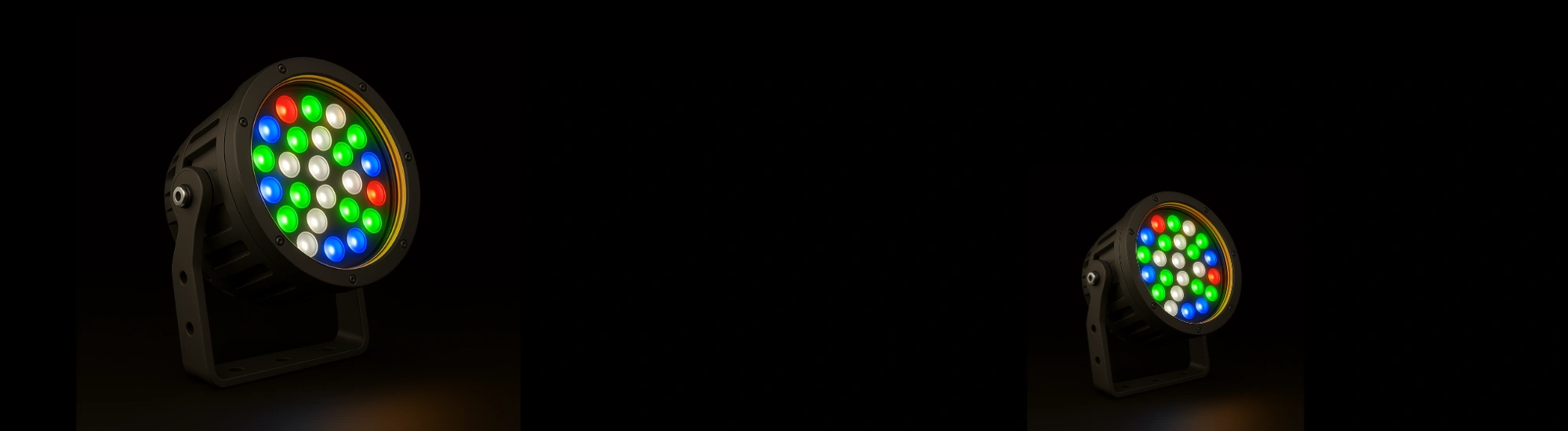

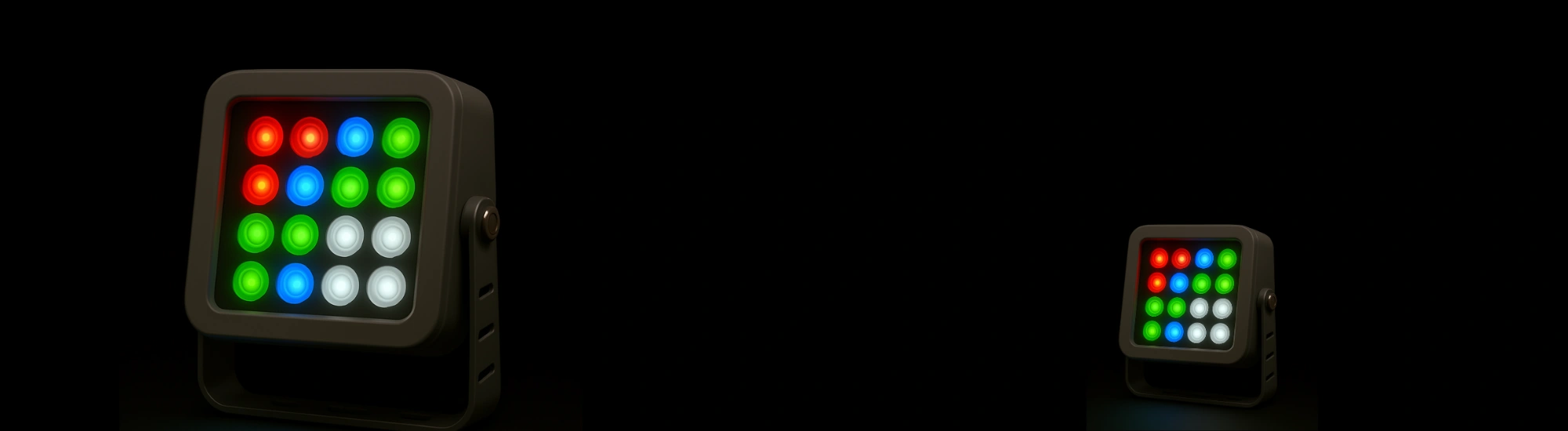

RGBW – Pixel – 24/48V DC Flood Light
Pixel-precise RGB control plus a crisp white channel for true tone scenes.
Explore FeaturesOverview
Ideal for concerts, show facades, and media buildings.
Product Information
Delivers precise RGB effects with added clarity from the dedicated white channel. Fully addressable pixel segments allow for advanced color mixing and elegant gradients across large surfaces.
Gallery
Downloads
Specifications Table
| Feature | Value | Feature | Value |
|---|---|---|---|
| Model | MECRW612P-24/48V | LED Emitter | 0.5W [5730 or 2835] |
| Output Lumens | 100-120LM Per WATT | Operational Voltage | 24/48V DC (Customized) |
| Wattage | 30W/50W/100W/150W/200W/250W/500W | Colour Temperature | RGBW |
| Beam Angle | 10°, 15°, 25°, 30°, 45°, 60°, 90°, 120° | CRI | ≥90 |
| Size | Customized | Control Type | On/Off, 0–10V/PWM dimming, DMX512/RDM |
| IP Rating | IP65, IP66, IP67 | Life Span Time | 50,000 hours |
| Protocol | DMX512,SPI,ArtNET,DALI | Shape | Rectangle / Circle |
| Housing Material | Die-cast aluminum with powder coating | Installation Type | Adjustable bracket mount/pole mount /wall mount |
