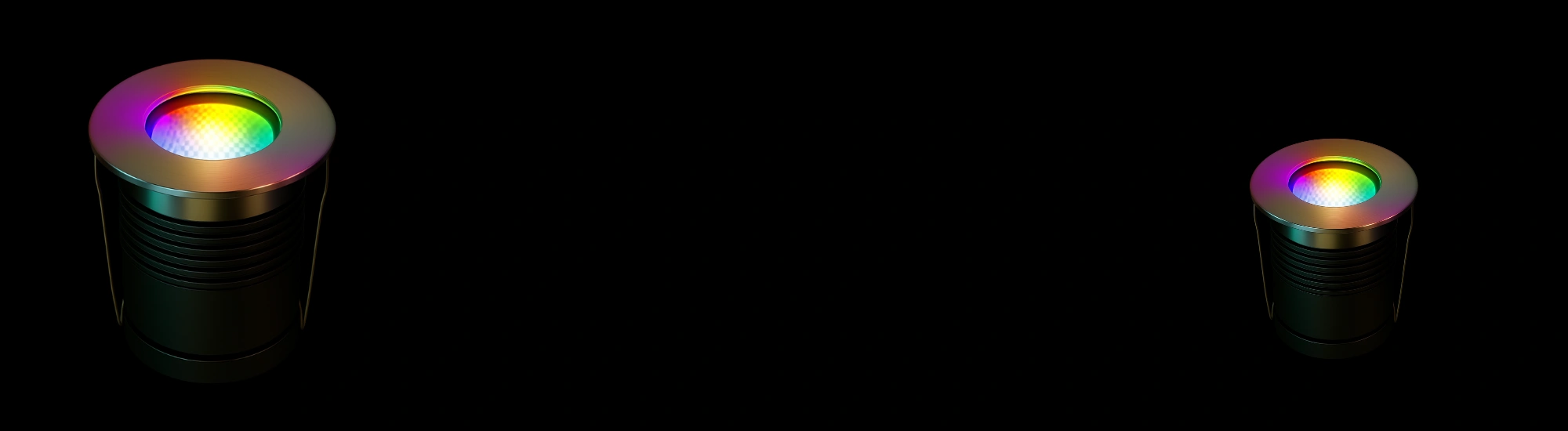

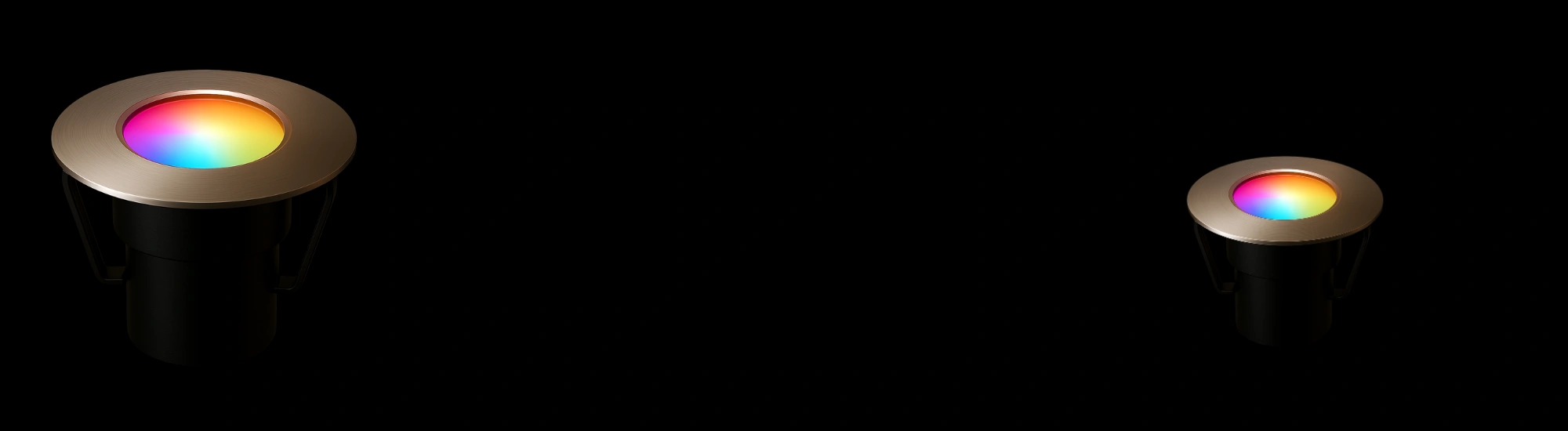

RGBW – Pixel – 24/48V DC Ground Light
Pixel RGB with added white channel for clarity and advanced blending.
Explore FeaturesOverview
Ideal for interactive lighting, design architecture, and premium landscapes.
Product Information
Offers stunning RGB motion with crisp white contrast, all controllable by pixel. This light is perfect for detail-rich lighting effects where true color tone and warmth are essential.
Gallery
Downloads
Specifications Table
| Feature | Value | Feature | Value |
|---|---|---|---|
| Model | MECRW187P-24/48V | Wattage | 7W/12W/18W/20W/24W/30W/36W |
| CCT | RGBW | Beam Angle | 8°, 15°, 25°, 30°, 45°, 60° |
| CRI | ≥90 | Protection Rating | IP65, IP66 , IP67 , IP68 |
| Source Code | 5050 | Voltage | 24/48V DC |
| Protocol | DMX512,ArtNET,SPI,DALI | Operational Temperature | 50°–60°C |
| Lifespan | 50,000 hours | Body Color | White / Black |
| Housing Material | Die-cast aluminum body with stainless steel | Control | On/Off, 0–10V/PWM dimming, DMX512 |
| Installation Type | Recessed ground housing with sleeve | Size(Outer Diameter ) | 60/90/120/150/200 MM (Customized) |
