24V RGBW Pixel LED Bar
Addressable pixel RGB with true white—perfect for shows, smart homes, and display lighting.
Explore FeaturesOverview
With both RGB and white channels under pixel control, this bar is built for precision and creative freedom.
Product Information
This 24V RGBW pixel LED bar enables individual control of each segment's RGB and white output. It delivers high color accuracy with vibrant effects, suitable for exhibitions, hotels, or interactive displays. The white LED helps produce pastel tones or add functional white where needed. Compatible with DMX or SPI systems, it's a go-to for premium creative lighting.

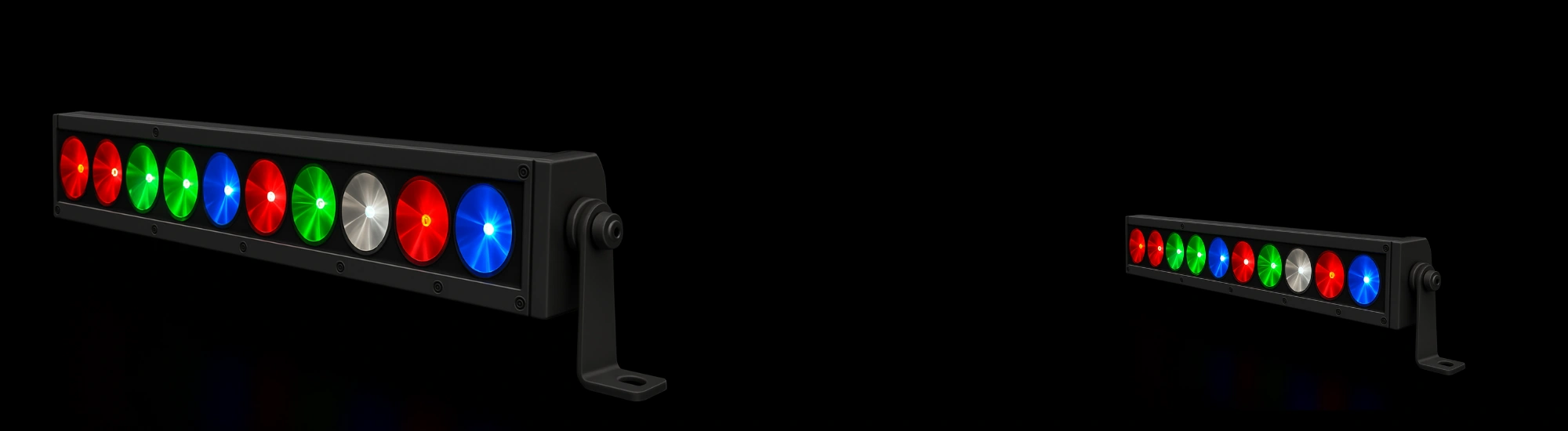

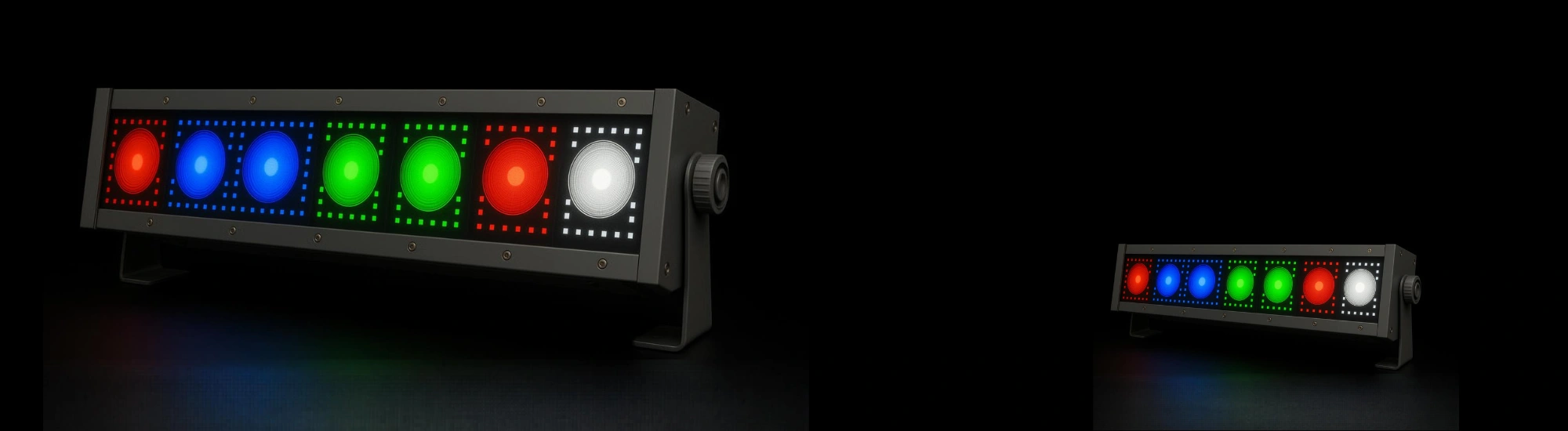

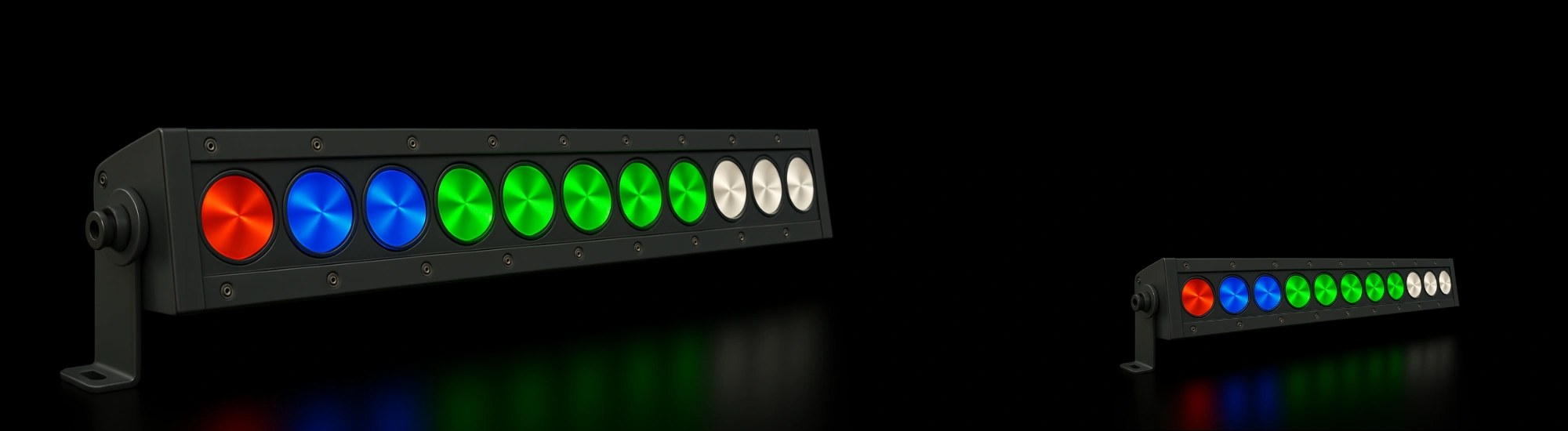

Gallery
Downloads
Specifications Table
| Feature | Value | Feature | Value |
|---|---|---|---|
| Model | MECRW122P-24V | Light Source | SMD5050 RGB LEDs |
| LED Quantity | 36 LEDs | Cover | Square Diffuser |
| View Angle | 120° | Pixels Control | 12 |
| Colour Mixing | RGBW | Protocols | DMX , SPI , ArtNET |
| Control Channels | NA | Address Setting | Manual |
| Input Voltage | 24V | Power Consumption | 20W/36W/40W |
| Dimensions | 750mm x 28mm x 50mm | Body Colour | Black/White |
| IP Rating | IP65, IP66 | Operating Temperature | 50°C – 60°C |
| Current | 0.60A – 0.62A/MTR | Body Type | Aluminium |
| Lifespan | 50000Hours |
