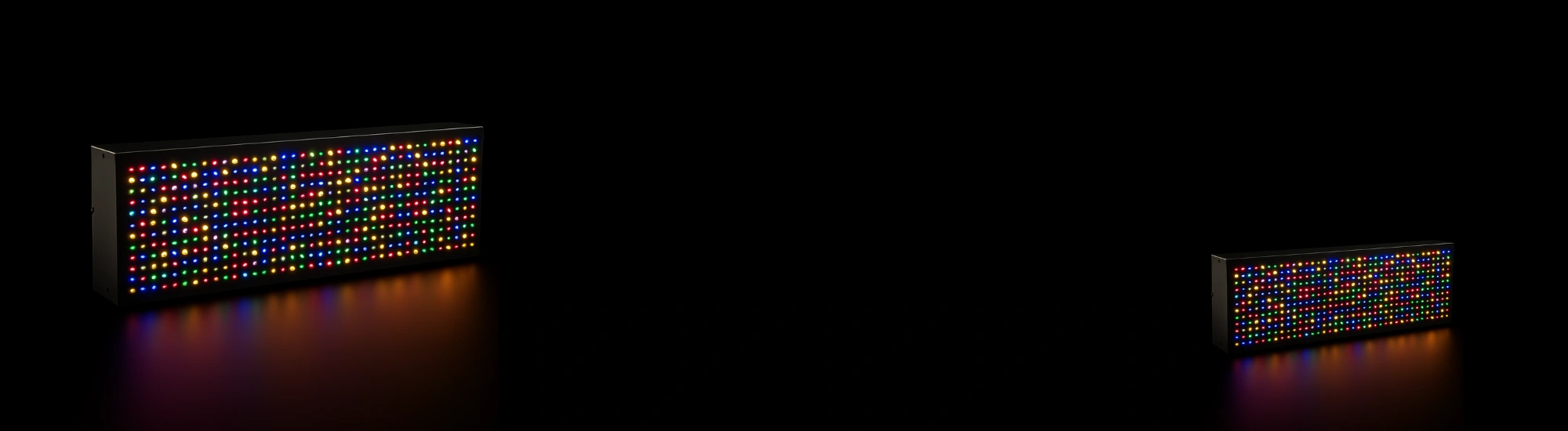

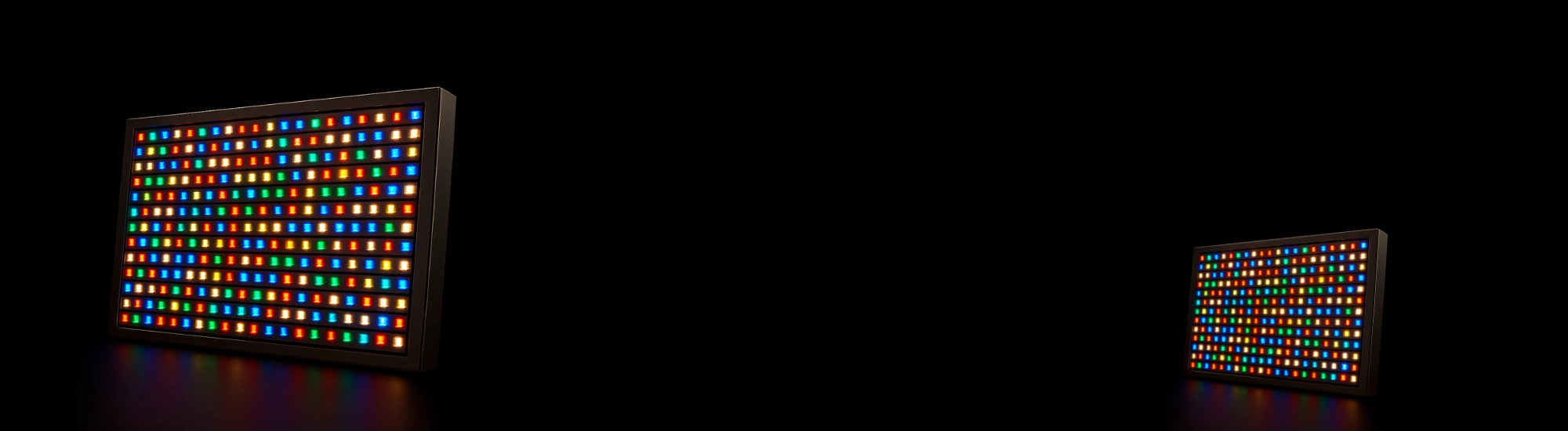

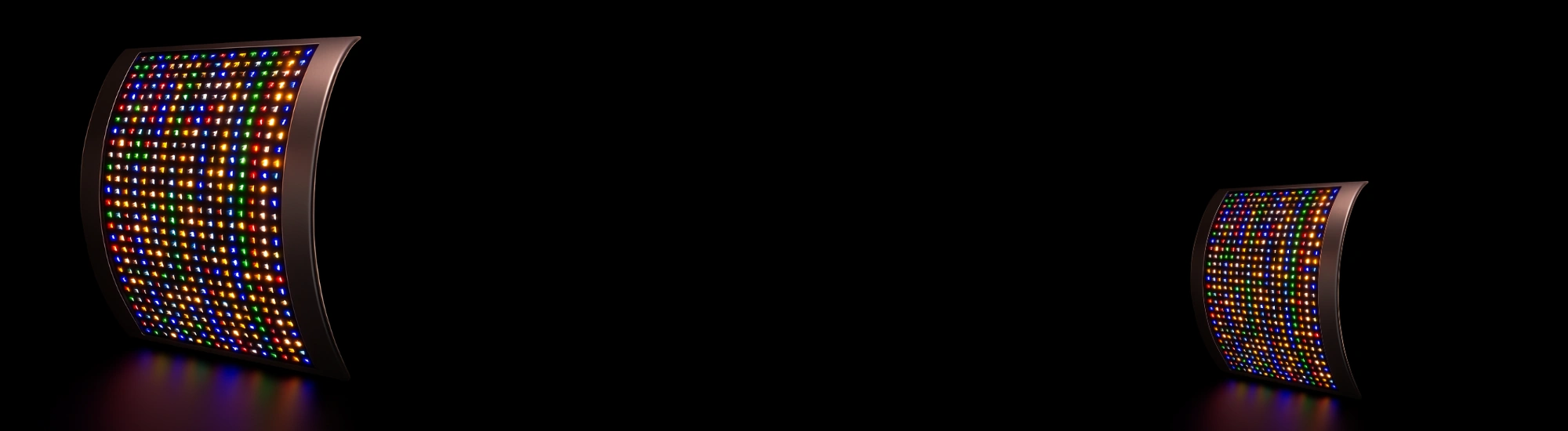

24V RGBW Pixel LED Panel
Advanced RGBW pixel lighting with true white—ideal for layered color designs and smart environments.
Explore FeaturesOverview
Gain full pixel control over RGB and white tones, with richer depth and cleaner whites in visual effects.
Product Information
This pixel LED panel uses 24V input and addressable ICs to control RGB and white channels per pixel group. The result is vibrant colors plus realistic white lighting for hybrid use cases. Suitable for interactive displays, lounges, or creative studios with digital controls.
Gallery
Downloads
Specifications
| Feature | Value |
|---|---|
| Model | MECRW1216P-24V |
| Wattage | 5W/4W |
| Input Voltage | 24V DC (Customized) |
| CCT | RGBW |
| CRI | ≥90 |
| Beam Angle | 120° |
| Dimensions | 300*300 , 600*600 |
| Led Make | CREE / BLX / LUMI / OSRAM |
| LED Source | 5050 |
| Operating Temperature | 45°-50°C |
| Burning Hours | 40,000 + hours |
| IP Rating | IP65, IP66 |
| Driver | FULLHAM/PHILIPS/BAG |
| Protocol | DMX , SPI , ArtNET |
| Warranty | 5 Years |
| Body Material | Aluminium |
| Current | 0.60A – 0.625A/MTR |
| Cutting Intervals | 100MM |
| Max Length | 10-12 MTR |
| Lumens | 479 |
