24V RGBW – Pixel Wall Washer
Pixel RGBW control for deep color and pure white, suitable for dynamic wall effects.
Explore FeaturesOverview
Enables multi-zonal RGBW effects in smart, high-end architectural settings.
Product Information

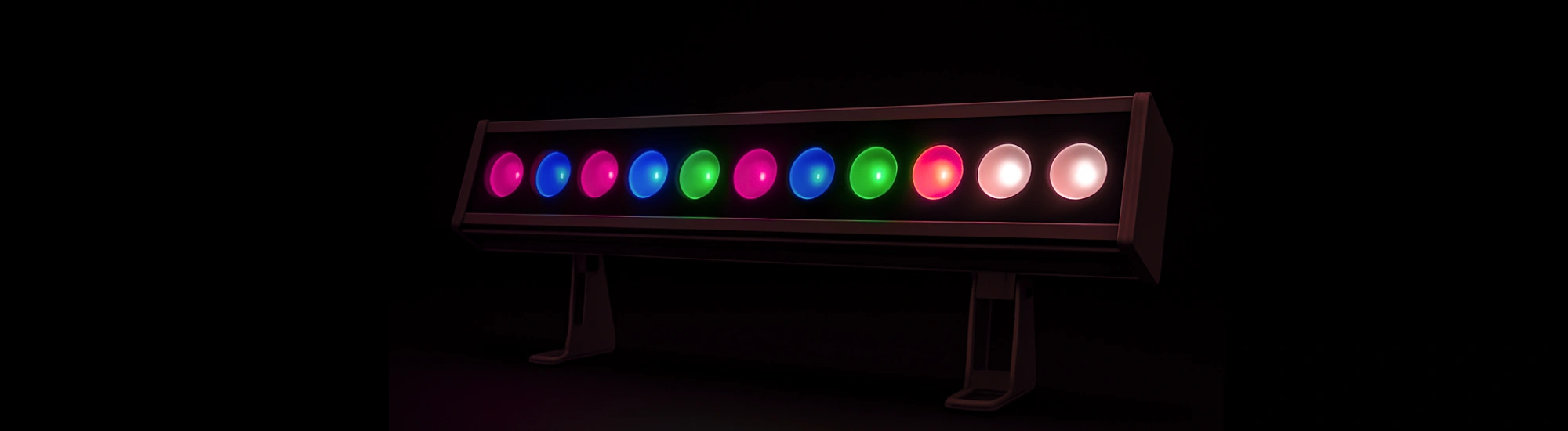

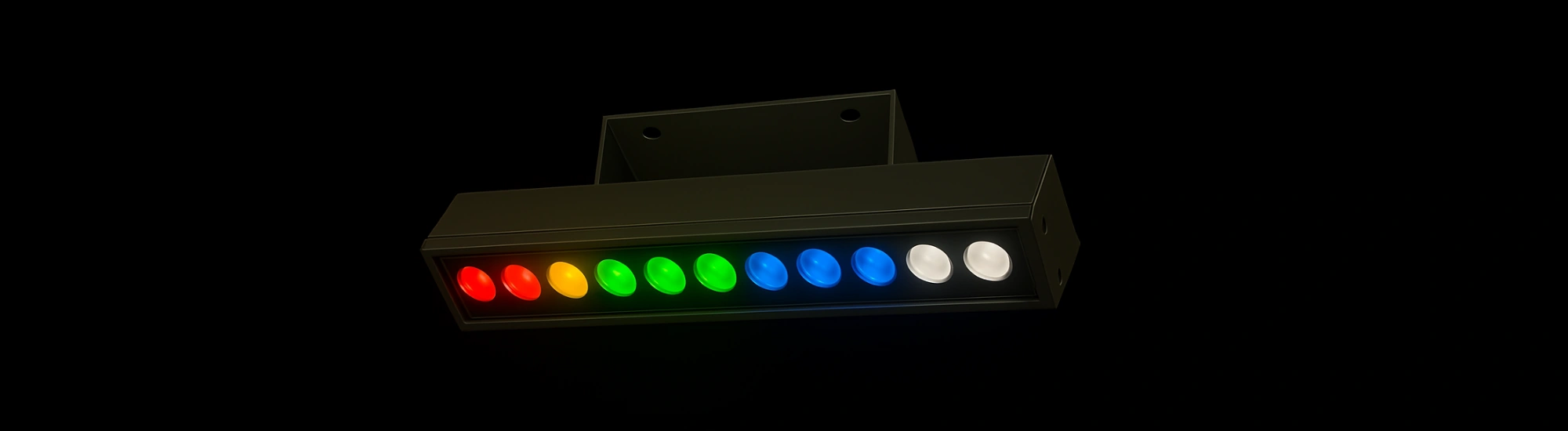

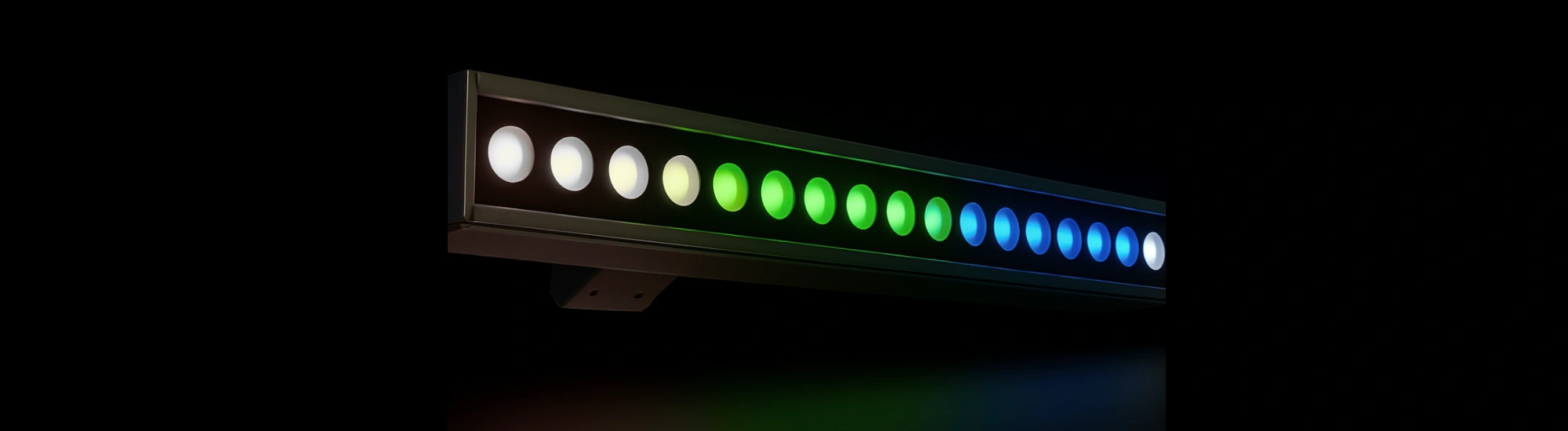

This wall washer provides pixel-level RGB and white control, allowing full-scene customization and dynamic effects with pure white tones. It’s widely used in hotels, tech parks, and immersive event lighting.
Gallery
Downloads
Specifications Table
| Feature | Value | Feature | Value |
|---|---|---|---|
| Model | MECRW2323P-24V | Wattage | 12W/15W/18W/24W/72W |
| CCT | RGBW | CRI | ≥90 |
| LED Type | SMD5050 | LED Qty | 24Pcs |
| Beam Angle | 15°, 30°, 45° | Light Output Ratio | 70% |
| Input Voltage | 24V | Body Material | Aluminium |
| Protection Rating | IP65, IP66, IP67 | Operating Temperature | 50-60°C |
| Current | 0.60A–0.625A | Protocol | DMX512,SPI,ArtNET,DALI |
| Lifespan | 50,000 Hours | Size | 1000MM (Customized) |
| Installation Type | Surface/Track/Pole/Recessed |
