48V RGBW Non Pixel LED Panel
Smart RGBW lighting without pixel control—best for blended scenes and ambient tones.
Explore FeaturesOverview
Mix color and white in long-run installations that don’t require per-pixel animation.
Product Information
This non-pixel RGBW panel operates on 48V and supports 4-channel RGBW dimming. Simple setup and wide coverage make it ideal for retail ceilings, decorative walls, and multi-room lighting with controller sync.

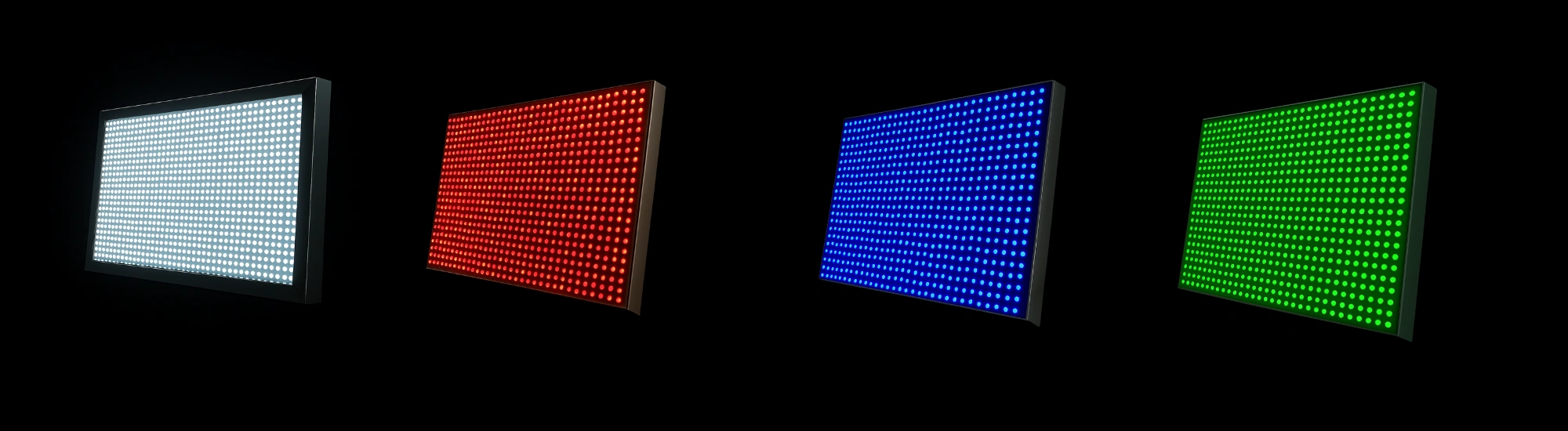

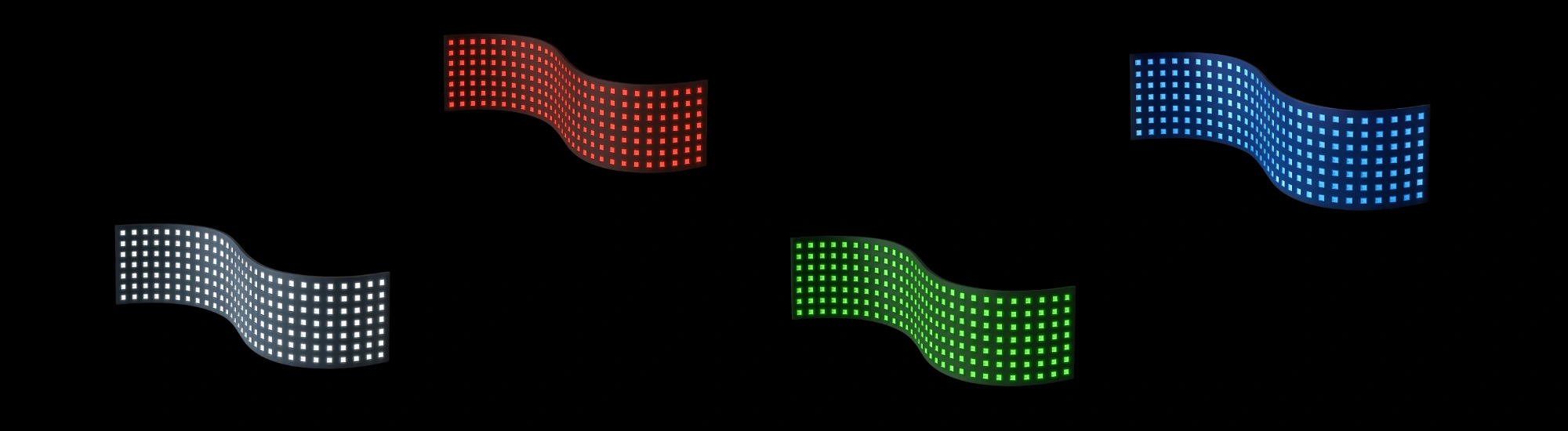

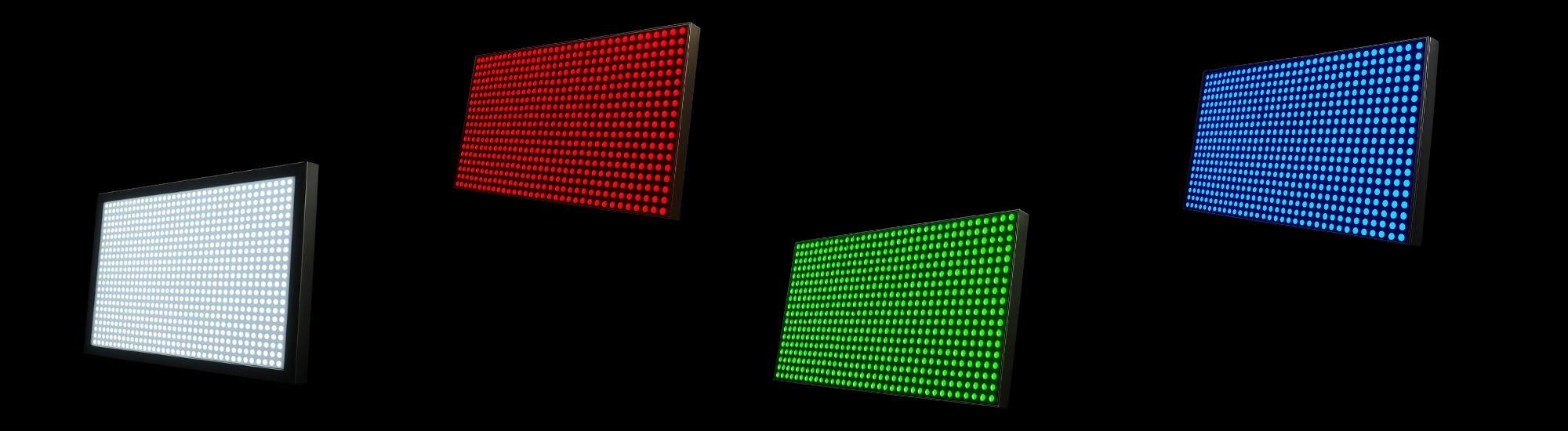

Gallery
Downloads
Specifications Table
| Feature | Value | Feature | Value |
|---|---|---|---|
| Product Code | MECRW1216NP-48V | Power Consumption | Customized |
| Cutting Intervals | 100MM | Voltage | 48V |
| Wattage/Meter | 5W/4W | Current A/M | 0.30–0.32A/MTR |
| Lumens | 479 | Operating Temperature | 50°–60°C |
| Colour Temperature | RGBW | Max Length | 10–12 MTRS |
| Protocol | NA | LED Source | 5050 |
| LED Life Time | 50,000 Hrs | IP Rating | IP65, IP66 |
| Size | 300*300MM , 600*600MM | Pixel | NA |
| CRI | ≥90 |
