Overview
Ideal for towers, smart city exteriors, and stage architecture.
Product Information

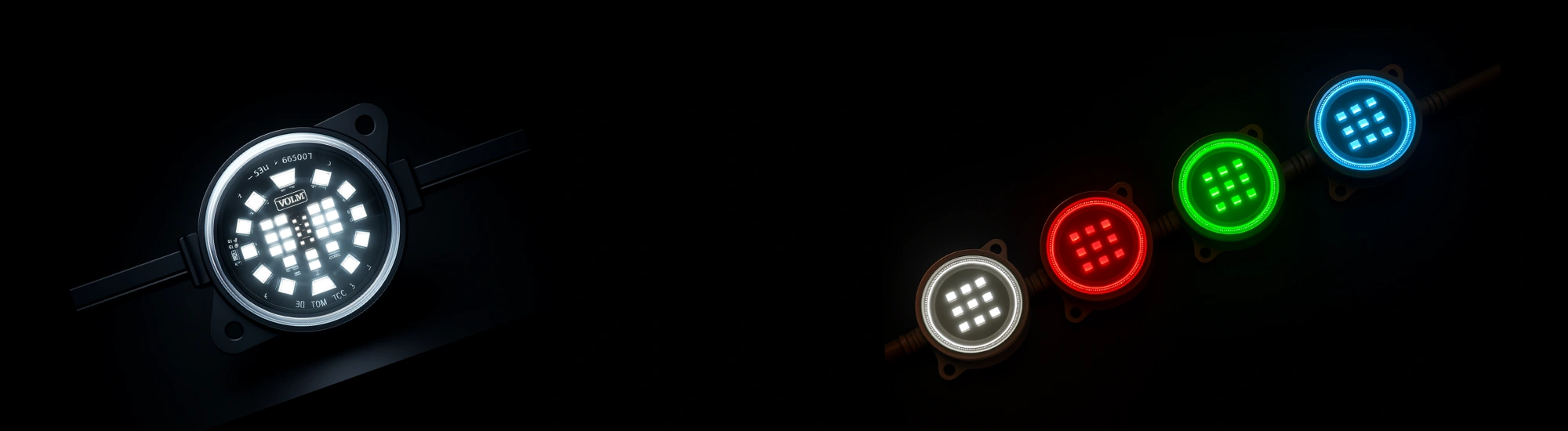

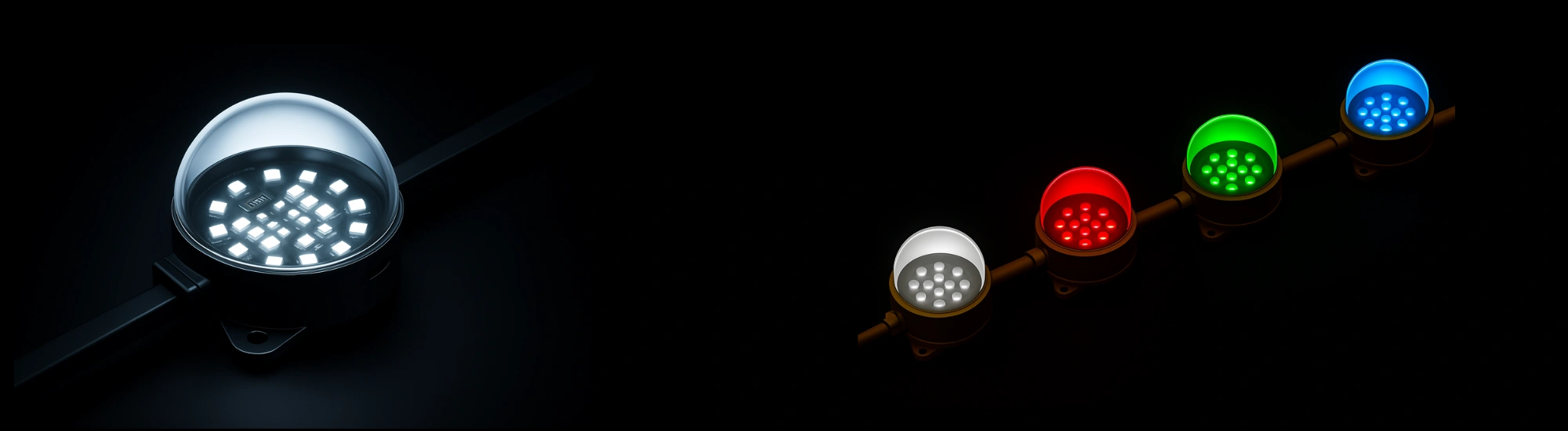

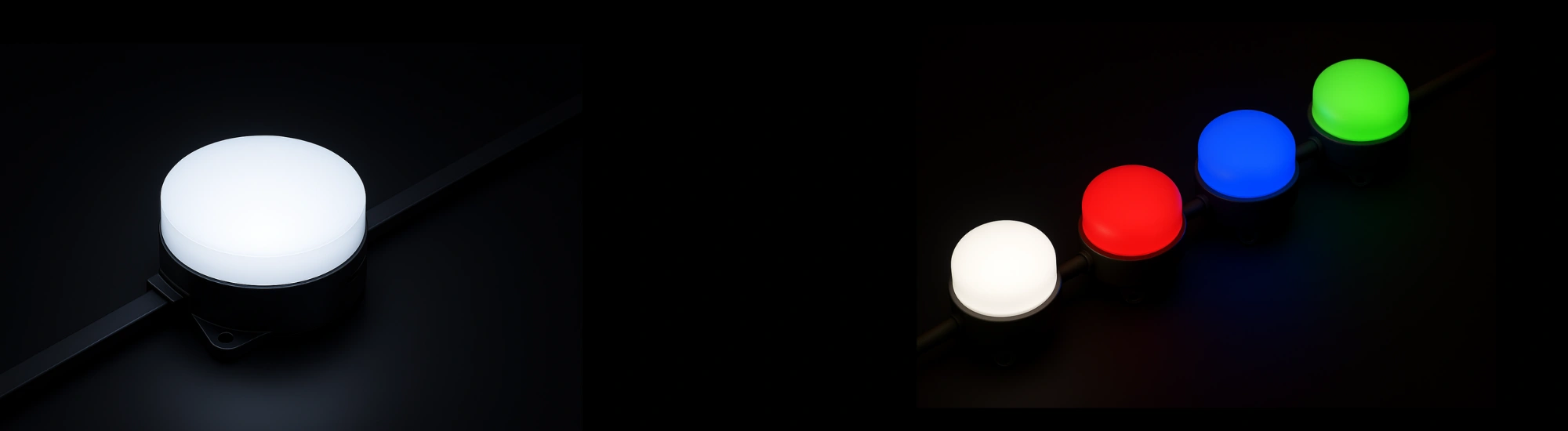

The 48V Pixel RGBW Dot Light merges full animation and pure white light per pixel. With DMX/SPI compatibility, it delivers creative sequences over wide spans. High-end projects benefit from the clarity, brilliance, and advanced control it provides.
Gallery
Downloads
Specifications
| Feature | Value |
|---|---|
| Model | MECRW412P-48V |
| Wattage | 4-20W/M |
| Input Voltage | 48V DC (Customized) |
| CCT | RGBW |
| CRI | ≥90 |
| Beam Angle | 120°-360° |
| Led Make | CREE / BLX / LUMI / OSRAM |
| LED Source | 5050 |
| Operating Temperature | 45°-50°C |
| Burning Hours | 40,000 + hours |
| IP Rating | IP66, IP67, IP68 |
| Driver | FULLHAM/PHILIPS/BAG |
| Protocol | DMX , SPI , ArtNET |
| Warranty | 5 Years |
| Body Material | Aluminium |
| Current | 0.60A – 0.625A/MTR |
| Cutting Intervals | 100MM |
| GRAY Scale | 16 Bits 65,536 |
| Grust Material | Polycarbonate / Silicone / Aluminum |
