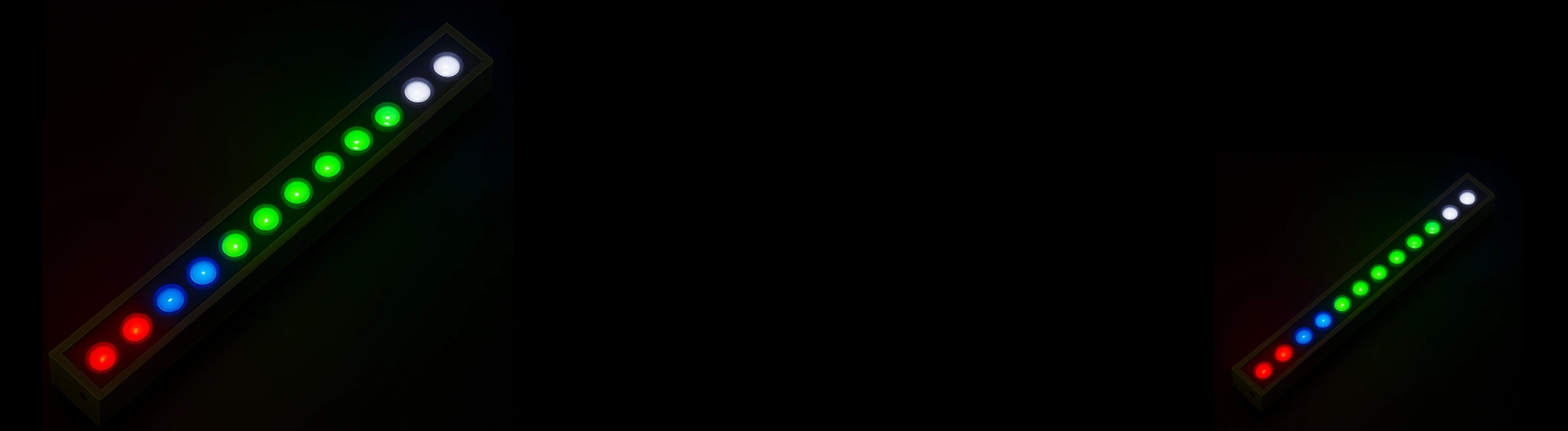

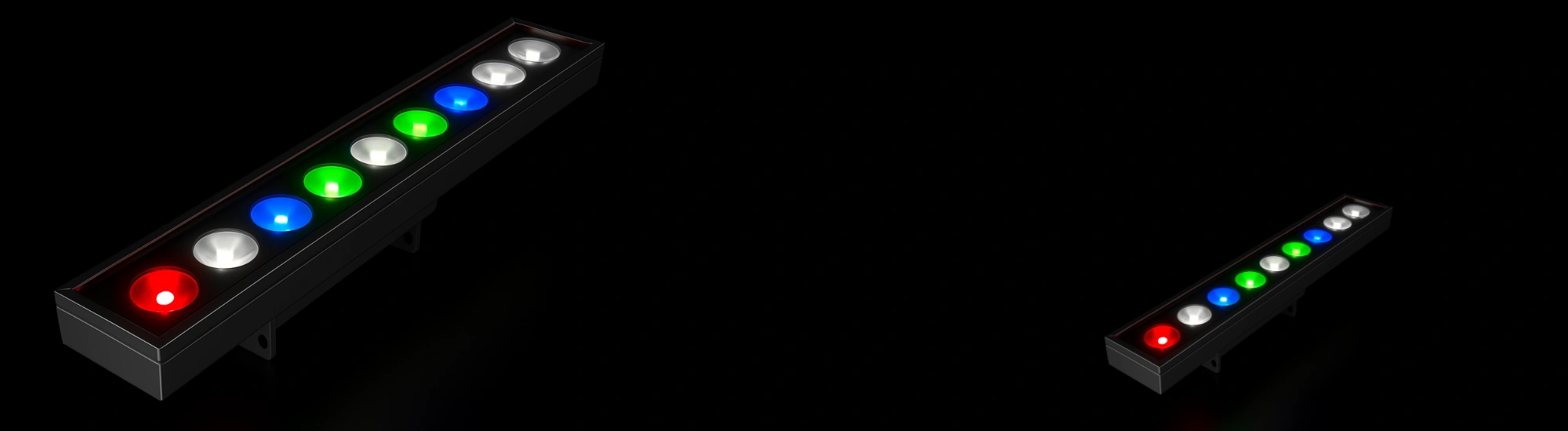

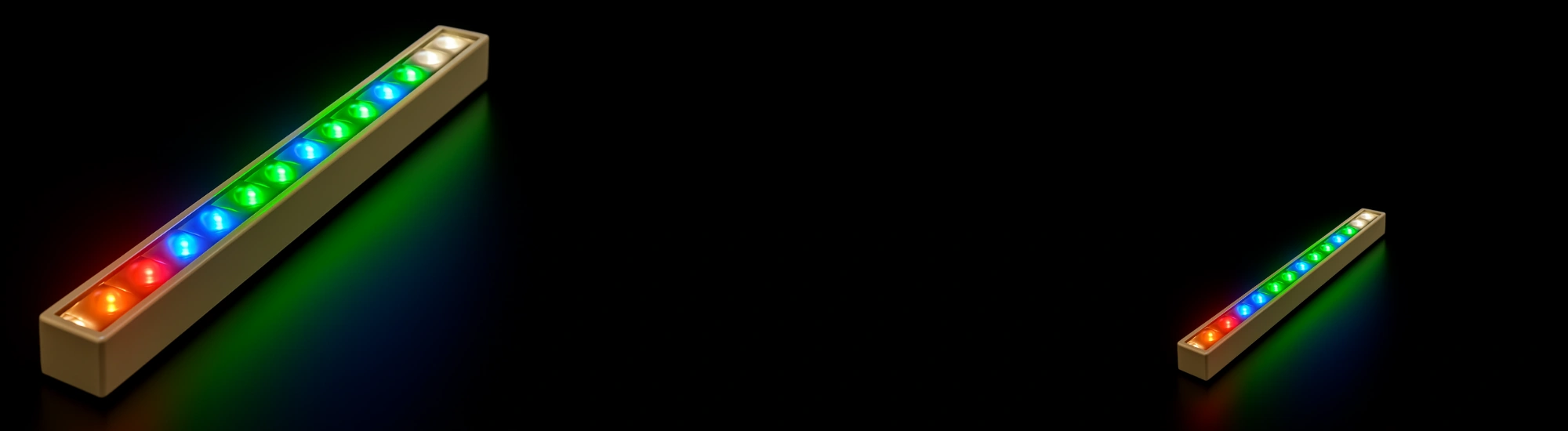

48V RGBW Pixel LED Bar
Pixel-controlled RGBW with long-run stability—built for high-end design and architectural precision.
Explore FeaturesOverview
Combining precision, high power, and RGBW flexibility, this is the go-to for premium lighting designers.
Product Information
This LED bar offers addressable control over both RGB colors and white light. It’s perfect for modern buildings, malls, or media walls where white tone balance and vivid animation are required. The 48V input ensures stable operation across longer installations, and integration with DMX or SPI makes professional control seamless.
Gallery
Downloads
Specifications
| Feature | Value |
|---|---|
| Model | MECRW122P-48V |
| Wattage | 14.5W/MTR |
| Input Voltage | 48V DC (Customized) |
| CCT | RGBW |
| CRI | ≥90 |
| Beam Angle | 120° |
| Dimensions | 750mm x 28mm x 50mm |
| Led Make | CREE / BLX / LUMI / OSRAM |
| LED Source | 5050 |
| Operating Temperature | 45°-50°C |
| Burning Hours | 40,000 + hours |
| IP Rating | IP65, IP66 |
| Driver | FULLHAM/PHILIPS/BAG |
| Protocol | DMX , SPI , ArtNET |
| Warranty | 5 Years |
| Body Material | Aluminium |
| Current | 0.60A – 0.625A/MTR |
| Control Channels | NA |
| Address Setting | Manual |
| LED Quantity | 36 LEDs |
| Cover | Square Diffuser |
