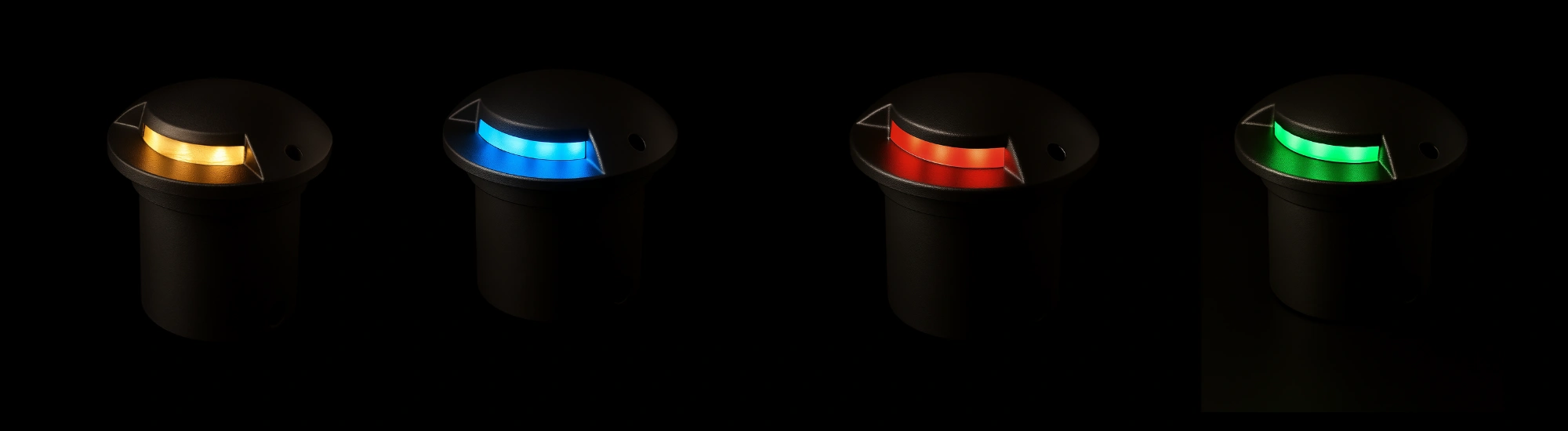

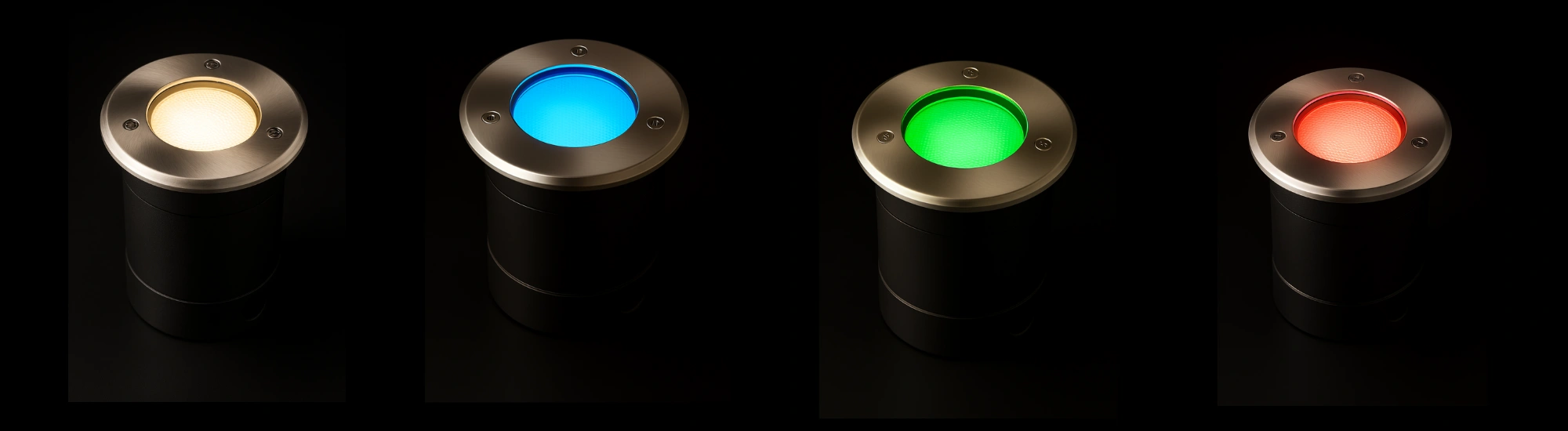

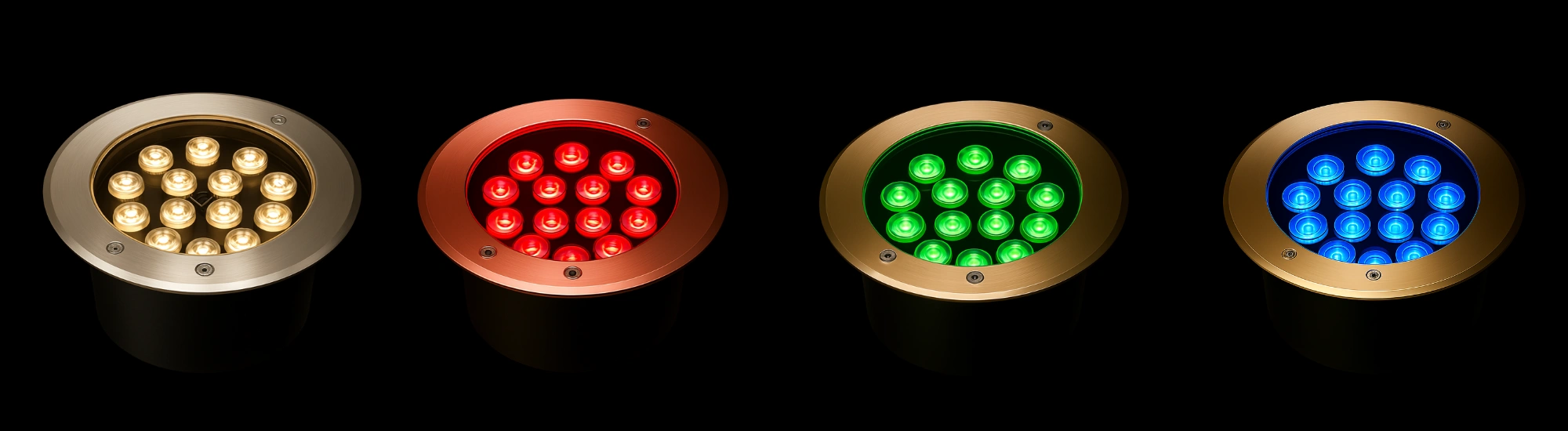

RGBWW – Non-Pixel – 24/48V DC Ground Light
Static RGB color with dual white tones—great for timeless ambiance.
Explore FeaturesOverview
Ideal for lighting architects and subtle heritage site applications.
Product Information
Non-pixel ground light featuring 5-channel RGBWW blending for customizable tone balance. Suited for stable lighting with the option of adjusting warmth, suitable for courtyards, galleries, and walkways.
Gallery
Downloads
Specifications Table
| Feature | Value | Feature | Value |
|---|---|---|---|
| Model | MECRWW187NP-24/48V | Wattage | 7W/12W/18W/20W/24W/30W/36W |
| CCT | RGBWW | Beam Angle | 8°, 15°, 25°, 30°, 45°, 60° |
| CRI | ≥90 | Protection Rating | IP65, IP66 , IP67 , IP68 |
| Source Code | 5050 | Voltage | 24/48V DC |
| Protocol | NA | Operational Temperature | 50°–60°C |
| Lifespan | 50,000 hours | Body Color | White / Black |
| Housing Material | Die-cast aluminum body with stainless steel | Control | On/Off, 0–10V/PWM dimming, DMX512 |
| Installation Type | Recessed ground housing with sleeve | Size(Outer Diameter ) | 60/90/120/150/200 MM (Customized) |
