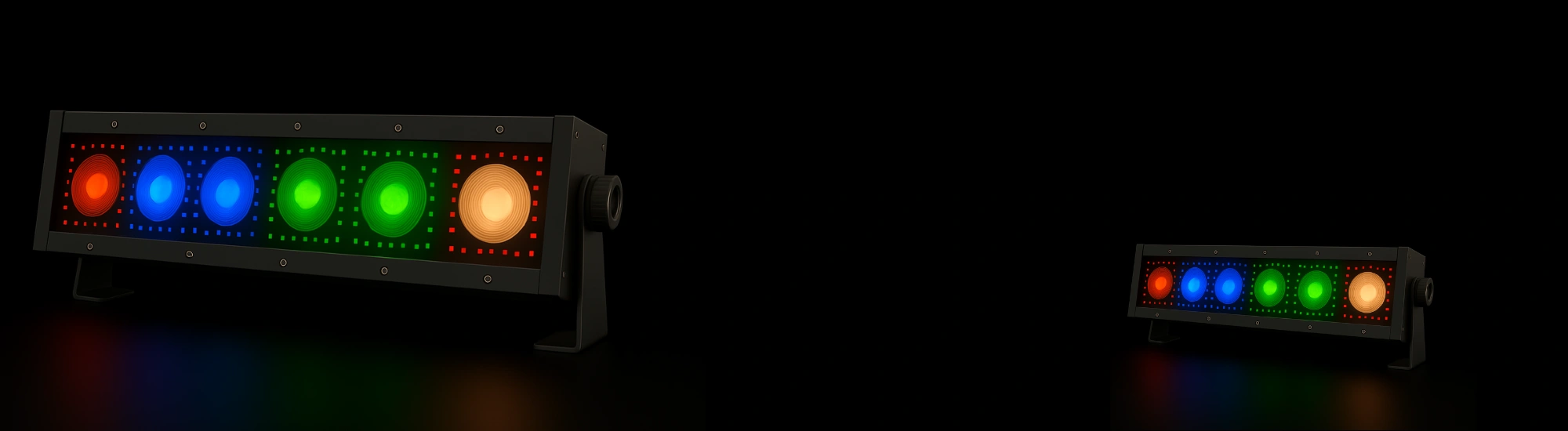

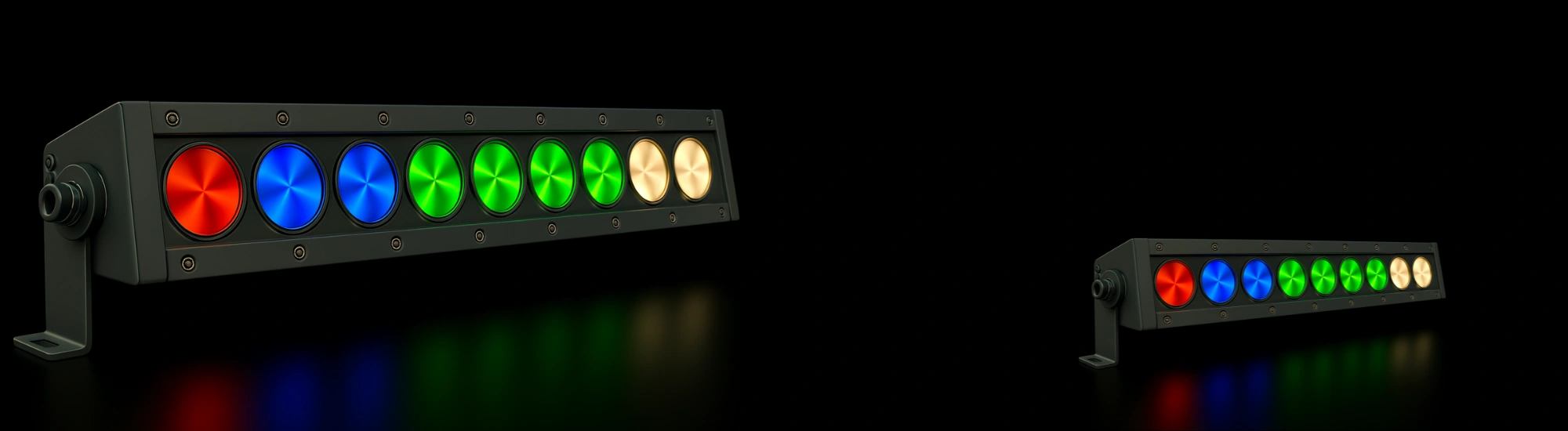

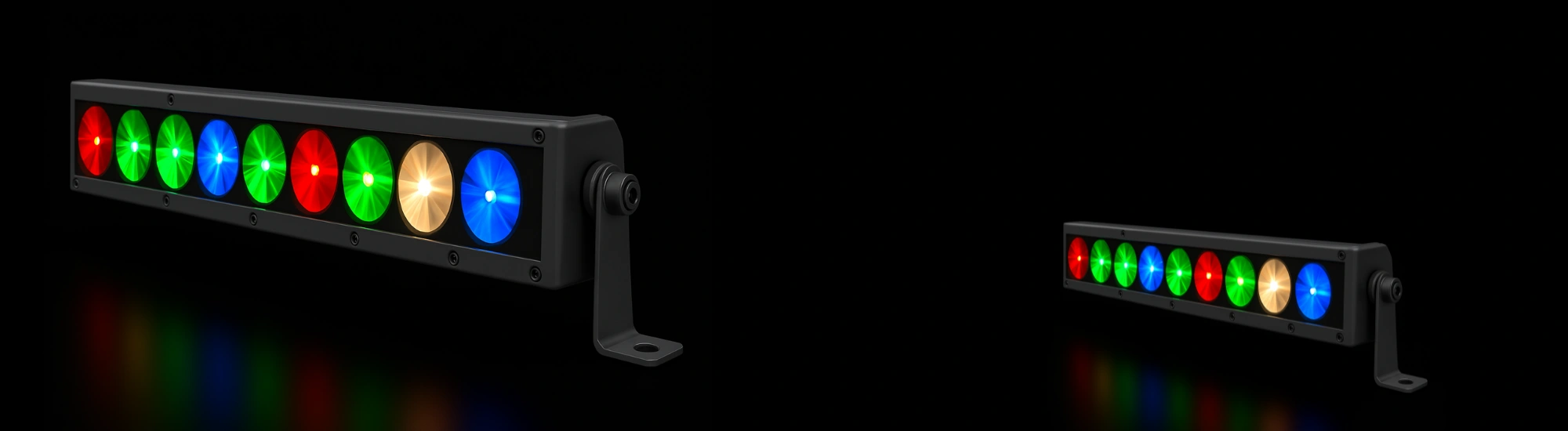

24V RGBWW Pixel LED Bar
Pixel-based RGB and tunable white effects—perfect for dynamic lighting in smart commercial zones.
Explore FeaturesOverview
This advanced LED bar supports both RGB animation and dual white tones, offering complete light spectrum control.
Product Information
With pixel control over RGB plus warm and cool white, this 24V RGBWW LED bar is ideal for spaces that require mood flexibility. Used in showrooms, museums, or hospitality settings, it enables realistic daylight shifts, animations, and fully customized scenes. It integrates easily into SPI or DMX ecosystems and delivers high-end performance for creative projects.
Gallery
Downloads
Specifications
| Feature | Value |
|---|---|
| Model | MECRWW122P-24V |
| Wattage | 14.5W/MTR |
| Input Voltage | 24V DC (Customized) |
| CCT | RGBWW |
| CRI | ≥90 |
| Beam Angle | 120° |
| Dimensions | 750mm x 28mm x 50mm |
| Led Make | CREE / BLX / LUMI / OSRAM |
| LED Source | 5050 |
| Operating Temperature | 45°-50°C |
| Burning Hours | 40,000 + hours |
| IP Rating | IP65, IP66 |
| Driver | FULLHAM/PHILIPS/BAG |
| Protocol | DMX , SPI , ArtNET |
| Warranty | 5 Years |
| Body Material | Aluminium |
| Current | 0.60A – 0.625A/MTR |
| Control Channels | NA |
| Address Setting | Manual |
| LED Quantity | 36 LEDs |
| Cover | Square Diffuser |
