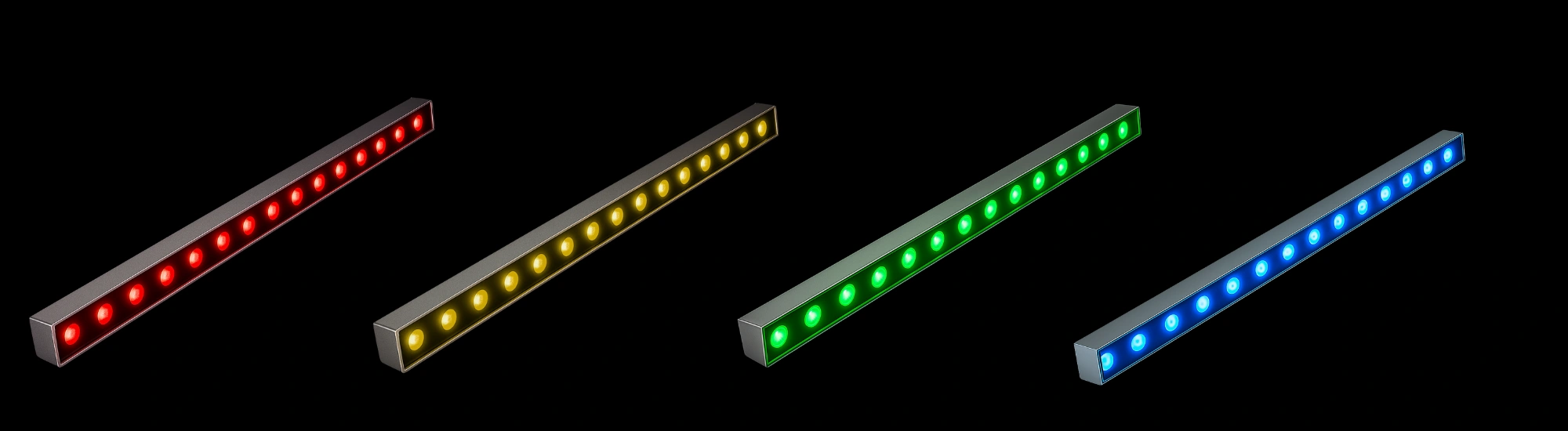

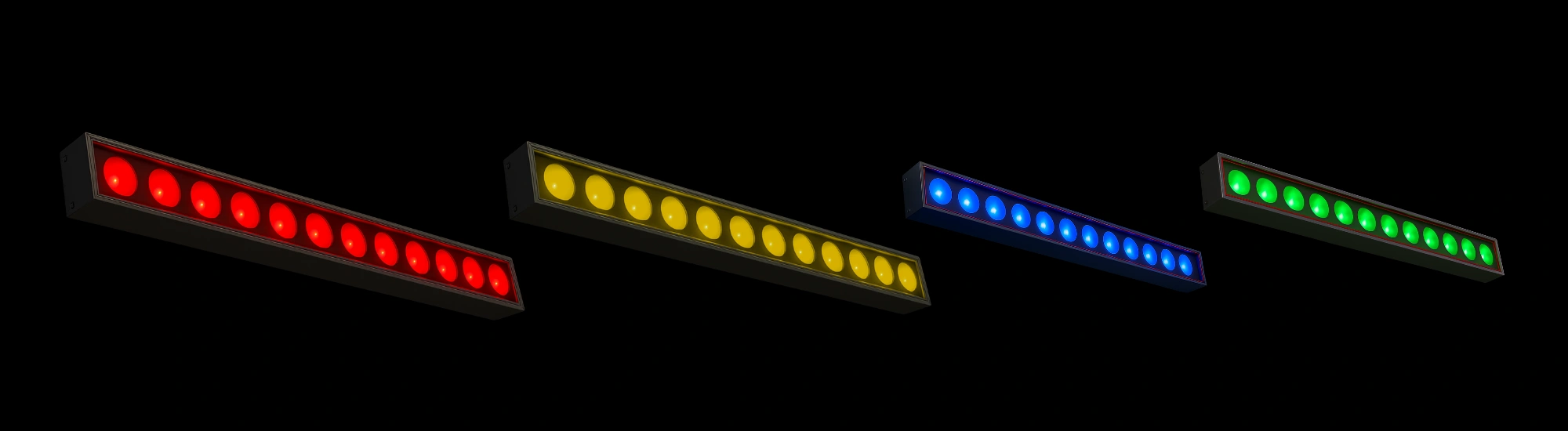

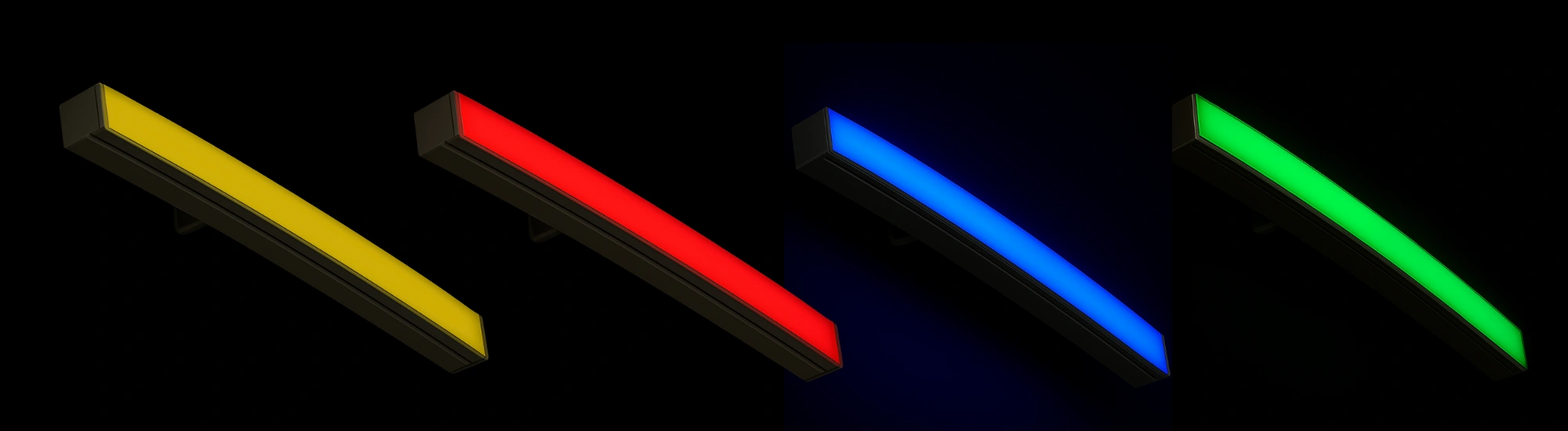

48V RGBWW Non Pixel LED Bar
RGB and tunable white without pixel effects—built for clean, simple, and powerful lighting environments.
Explore FeaturesOverview
Ideal for indoor or outdoor applications needing both colorful and neutral white light, without animation complexity.
Product Information
This 48V RGBWW bar offers strong output and a wide color range without addressable effects. It can switch between RGB colors and warm/cool white based on your controller. It's widely used in architectural lighting, hotel lobbies, or gallery environments, offering professional-grade lighting with minimal setup hassle.
Gallery
Downloads
Specifications
| Feature | Value |
|---|---|
| Model | MECRWW122NP-48V |
| Wattage | 14.5W/MTR |
| Input Voltage | 48V DC (Customized) |
| CCT | RGBWW |
| CRI | ≥90 |
| Beam Angle | 120° |
| Dimensions | 750mm x 28mm x 50mm |
| Led Make | CREE / BLX / LUMI / OSRAM |
| LED Source | 5050 |
| Operating Temperature | 45°-50°C |
| Burning Hours | 40,000 + hours |
| IP Rating | IP65, IP66 |
| Driver | FULLHAM/PHILIPS/BAG |
| Protocol | NA |
| Warranty | 5 Years |
| Body Material | Aluminium |
| Current | 0.60A – 0.625A/MTR |
| Control Channels | NA |
| Address Setting | Manual |
| LED Quantity | 36 LEDs |
| Cover | Square Diffuser |
