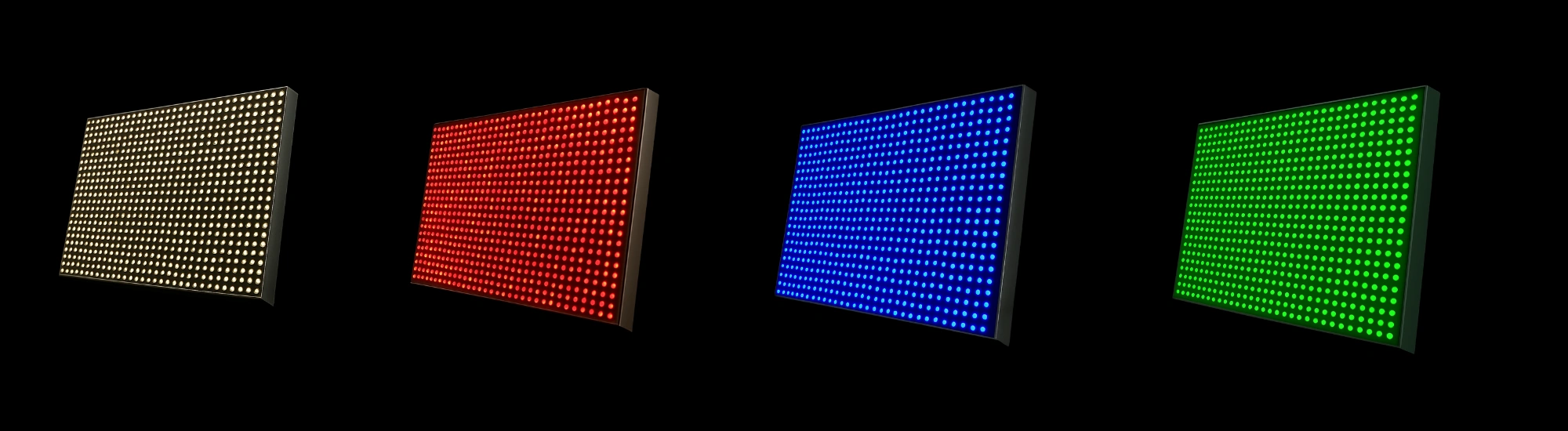

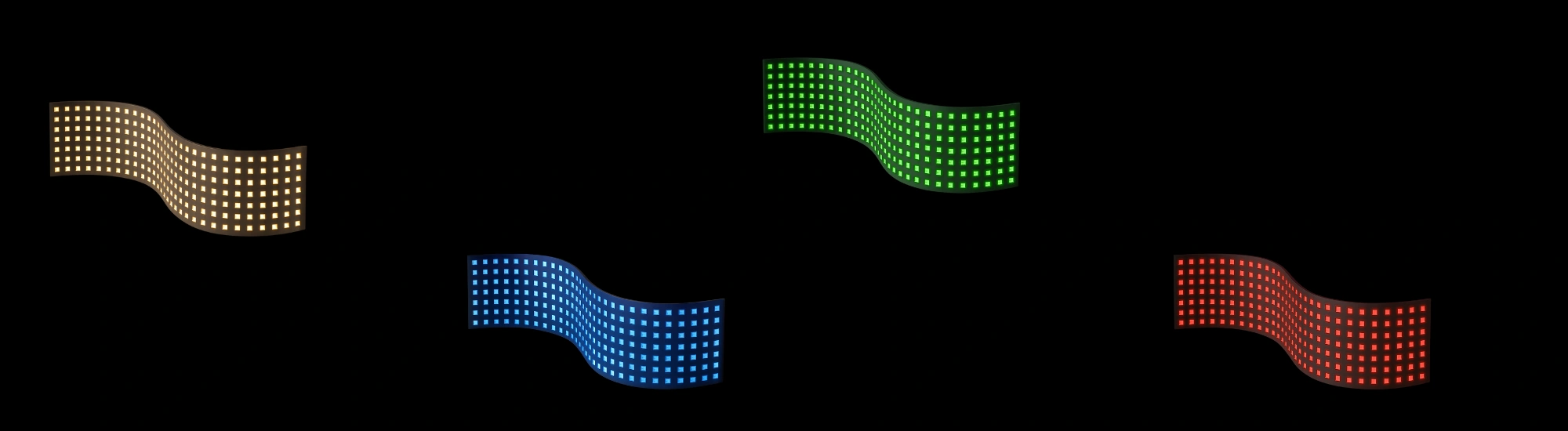

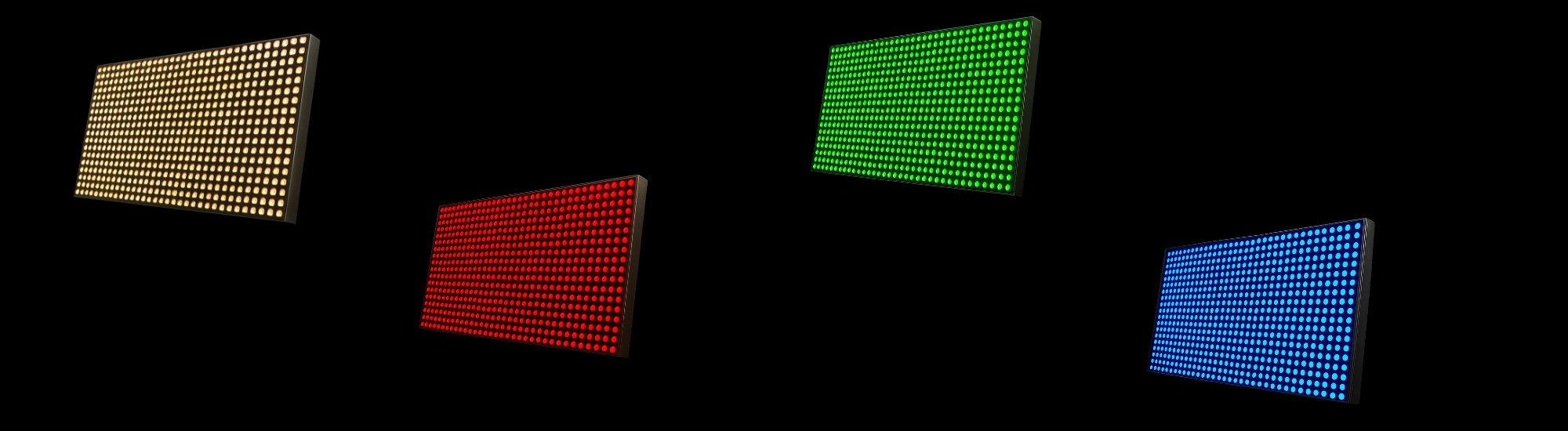

48V RGBWW Non Pixel LED Panel
RGB + adjustable white for simplified yet premium lighting control.
Explore FeaturesOverview
Offers both dynamic color and tunable white with minimal setup and wiring complexity.
Product Information
With 48V DC power and RGBWW LED chips, this panel blends color-rich lighting with white temperature adjustment. It’s perfect for modern interiors, product displays, or mood-lit commercial areas where animated pixel effects aren’t required.
Gallery
Downloads
Specifications
| Feature | Value |
|---|---|
| Model | MECRWW1216NP-48V |
| Wattage | 5W/4W |
| Input Voltage | 48V DC (Customized) |
| CCT | RGBWW |
| CRI | ≥90 |
| Beam Angle | 120° |
| Dimensions | 300*300 , 600*600 |
| Led Make | CREE / BLX / LUMI / OSRAM |
| LED Source | 5050 |
| Operating Temperature | 45°-50°C |
| Burning Hours | 40,000 + hours |
| IP Rating | IP65, IP66 |
| Driver | FULLHAM/PHILIPS/BAG |
| Protocol | NA |
| Warranty | 5 Years |
| Body Material | Aluminium |
| Current | 0.60A – 0.625A/MTR |
| Cutting Intervals | 100MM |
| Max Length | 10-12 MTR |
| Lumens | 479 |
