Overview
Perfect for ambient lighting in lobbies, malls, and commercial areas.
Product Information

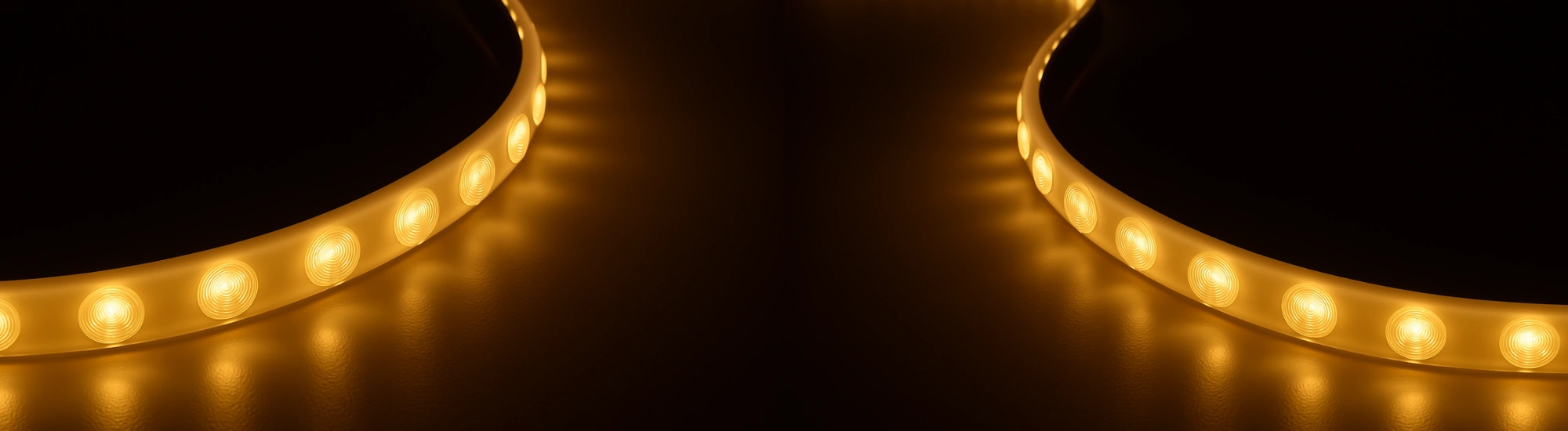

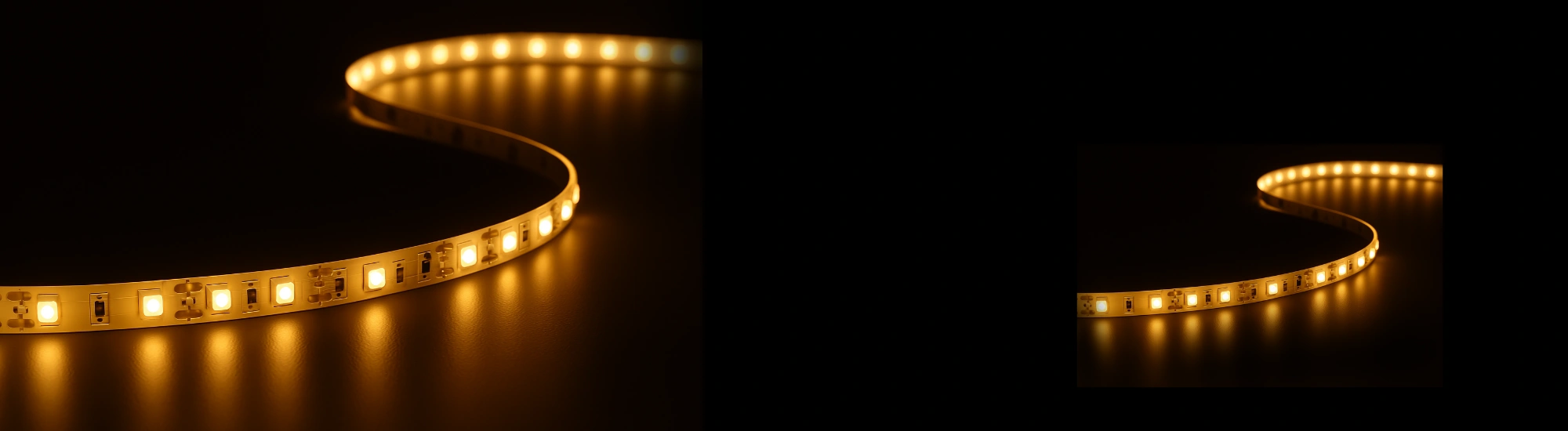

This 24V non-pixel strip offers a seamless, even warm white output, suited for extended installations requiring uniform illumination.
Gallery
.webp){kind=tracking}
.webp){kind=tracking}
.webp){kind=tracking}
.webp){kind=tracking}
.webp){kind=tracking}
.webp){kind=tracking}
.webp){kind=tracking}
.webp){kind=tracking}
.webp){kind=tracking}
.webp){kind=tracking}
.webp){kind=tracking}
.webp){kind=tracking}
.webp){kind=tracking}
.webp){kind=tracking}
.webp){kind=tracking}
.webp){kind=tracking}
Downloads
Specifications Table
| Feature | Value | Feature | Value |
|---|---|---|---|
| Product Code | MECWW1219NP-24V | Power Consumption | 14.5W/MTR |
| Cutting Intervals | 100MM | Voltage | 24V |
| Wattage/Meter | 14.5W/MTR | Current A/M | 0.60-0.625A/MTR |
| Lumens | 479 | Operating Temperature | 50°–60° |
| Colour Temperature | WW | Max Length | 10–12 MTRS |
| Protocol | NA | LED Source | 5050 |
| LED Life Time | 50,000 Hrs | IP Rating | IP20, IP54, IP65, IP66 |
| Strip Size | 10MM | Pixel | NA |
