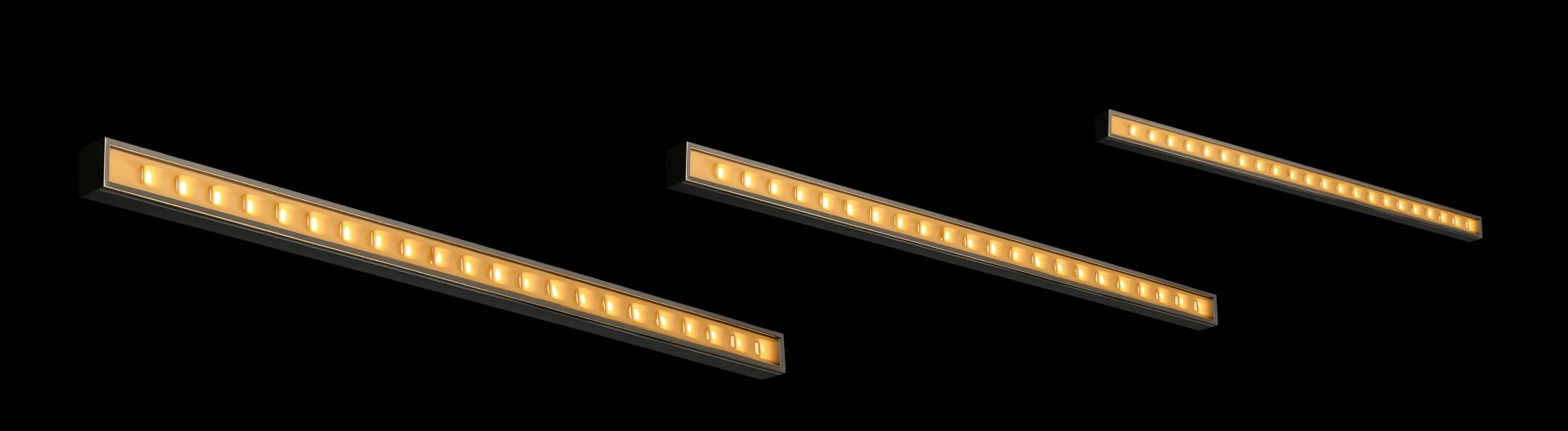

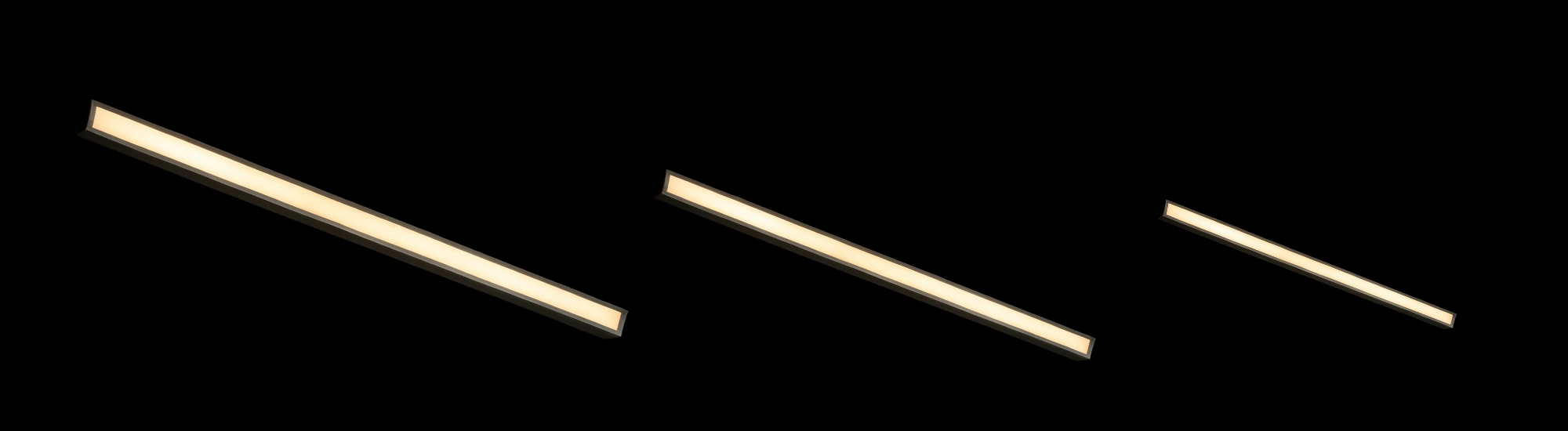

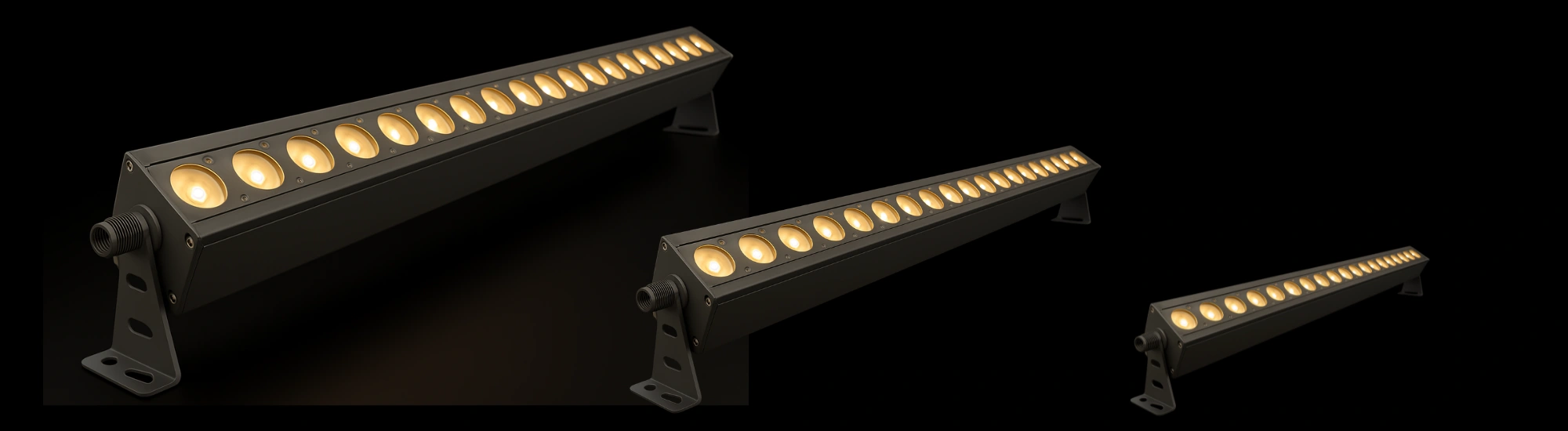

24V Warm White Non Pixel LED Bar
Uniform warm white lighting—ideal for offices, staircases, and general architectural accents.
Explore FeaturesOverview
A high-efficiency non-pixel bar for applications requiring simple, clean, and soft white lighting.
Product Information
This LED bar runs on 24V and delivers consistent warm white output, perfect for straight runs along ceilings, walls, or corridors. With a non-pixel design, it’s simple to install and doesn’t require any controller—just plug and glow. Best suited for ambient lighting, office setups, and interior commercial applications where no animations are needed.
Gallery
Downloads
Specifications Table
| Feature | Value | Feature | Value |
|---|---|---|---|
| Model | MECWW122NP-24V | Light Source | SMD5050 RGB LEDs |
| LED Quantity | 36 LEDs | Cover | Square Diffuser |
| View Angle | 120° | Pixels Control | 12 |
| Colour Mixing | WW | Protocols | NA |
| Control Channels | NA | Address Setting | Manual |
| Input Voltage | 24V | Power Consumption | 20W/36W/40W |
| Dimensions | 750mm x 28mm x 50mm | Body Colour | Black/White |
| IP Rating | IP65, IP66 | Operating Temperature | 50°C – 60°C |
| Current | 0.60A – 0.625A/MTR | Body Type | Aluminium |
| Lifespan | 50000Hours |
