24V Warm White – Pixel Wall Washer
Pixel-addressable warm lighting for architectural facades and textured surfaces.
Explore FeaturesOverview
Designed for applications where zonal dimming and warm ambiance are essential, like hotels or archways.
Product Information

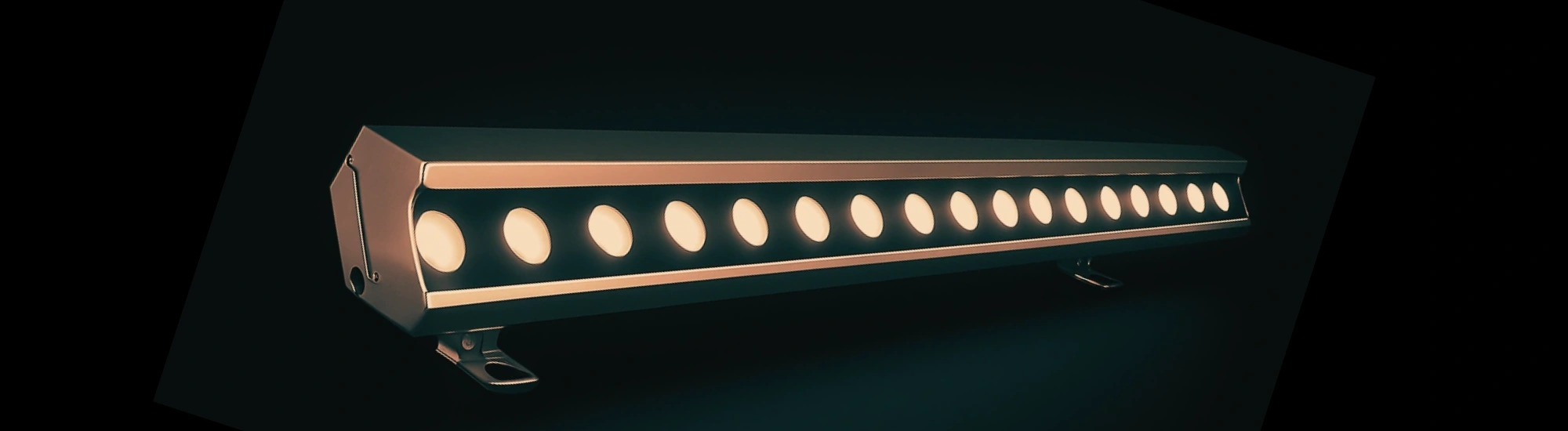

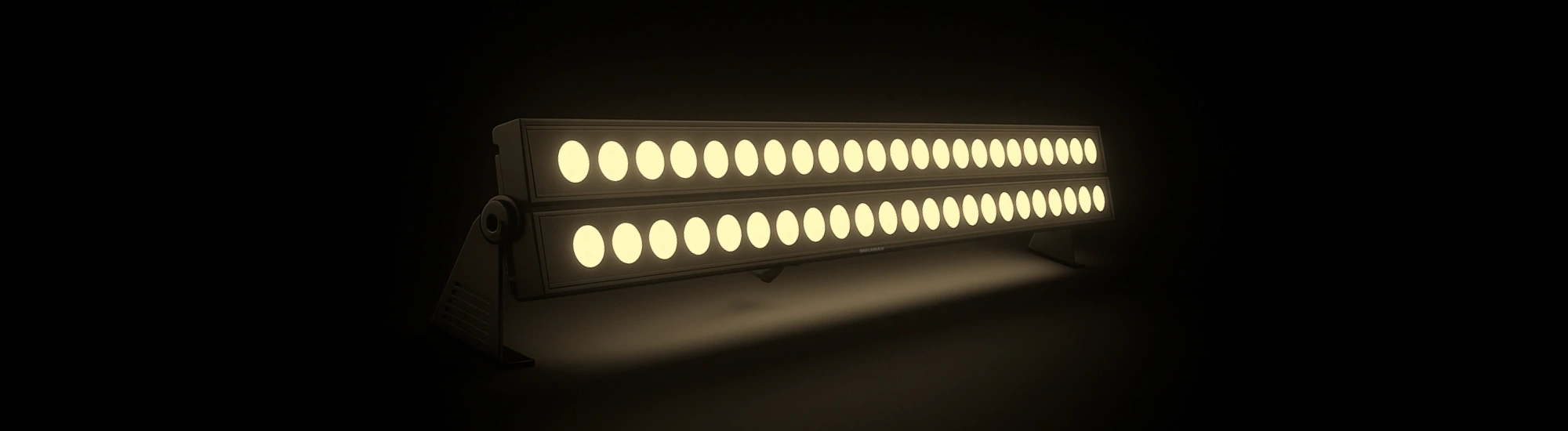

This 24V pixel wall washer offers dynamic warm white light with segment control, ideal for illuminating walls with softness and depth. Each pixel can be dimmed independently, creating movement and gradient transitions. Best suited for modern architecture and smart exteriors.
Gallery
Downloads
Specifications Table
| Feature | Value | Feature | Value |
|---|---|---|---|
| Model | MECWW2323P-24V | Wattage | 12W/15W/18W/24W/72W |
| CCT | WW | CRI | ≥90 |
| LED Type | SMD5050 | LED Qty | 24Pcs |
| Beam Angle | 15°, 30°, 45° | Light Output Ratio | 70% |
| Input Voltage | 24V | Body Material | Aluminium |
| Protection Rating | IP65, IP66, IP67 | Operating Temperature | 50-60°C |
| Current | 0.60A–0.625A | Protocol | DMX512,SPI,ArtNET,DALI |
| Lifespan | 50,000 Hours | Size | 1000MM (Customized) |
| Installation Type | Surface/Track/Pole/Recessed |
