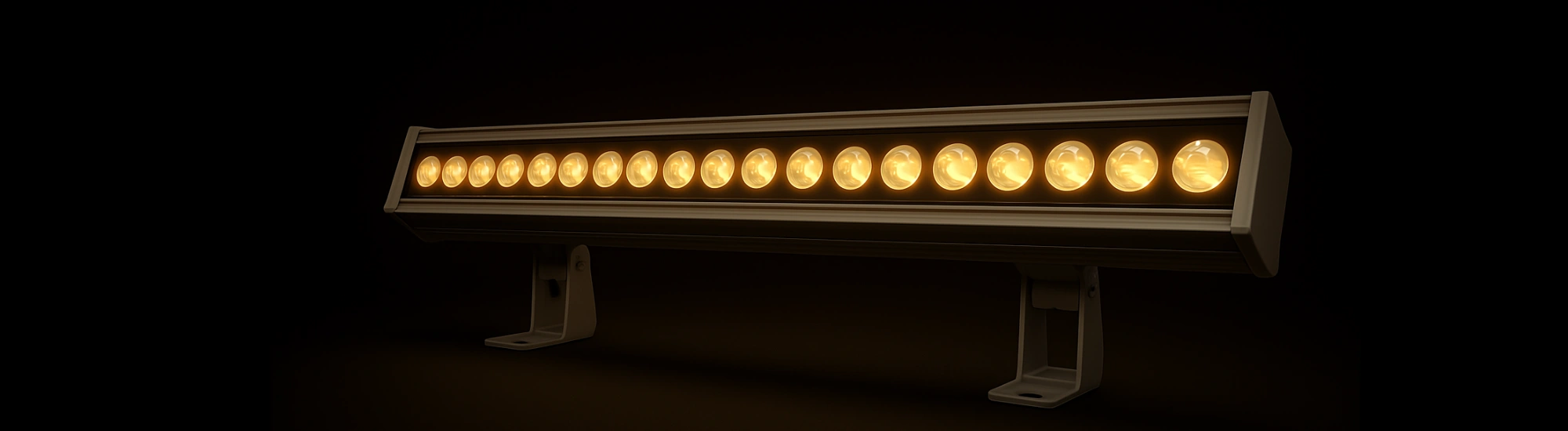

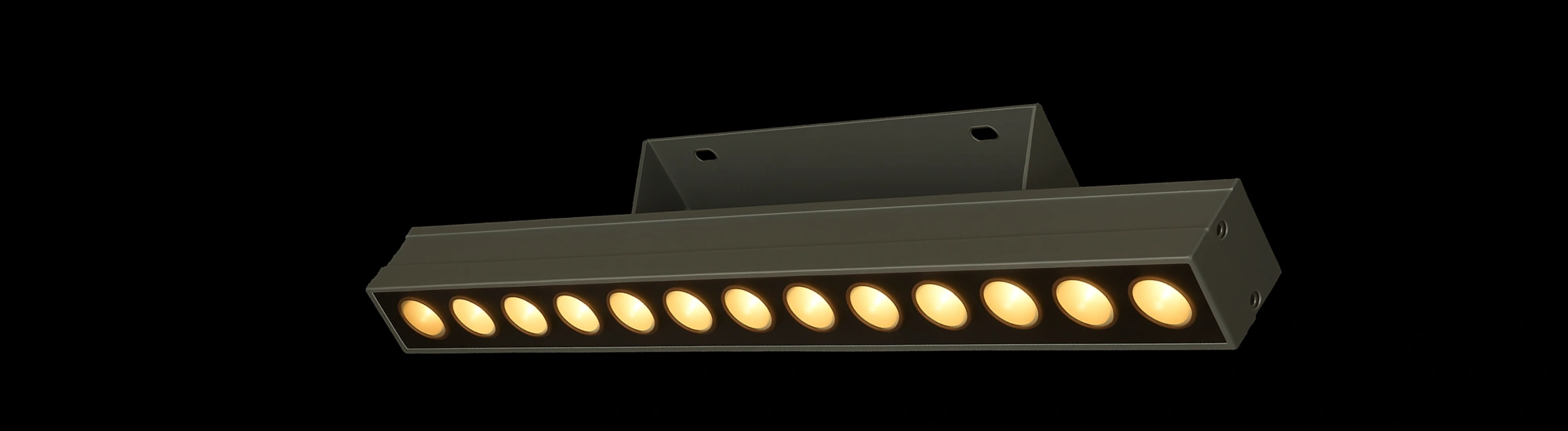

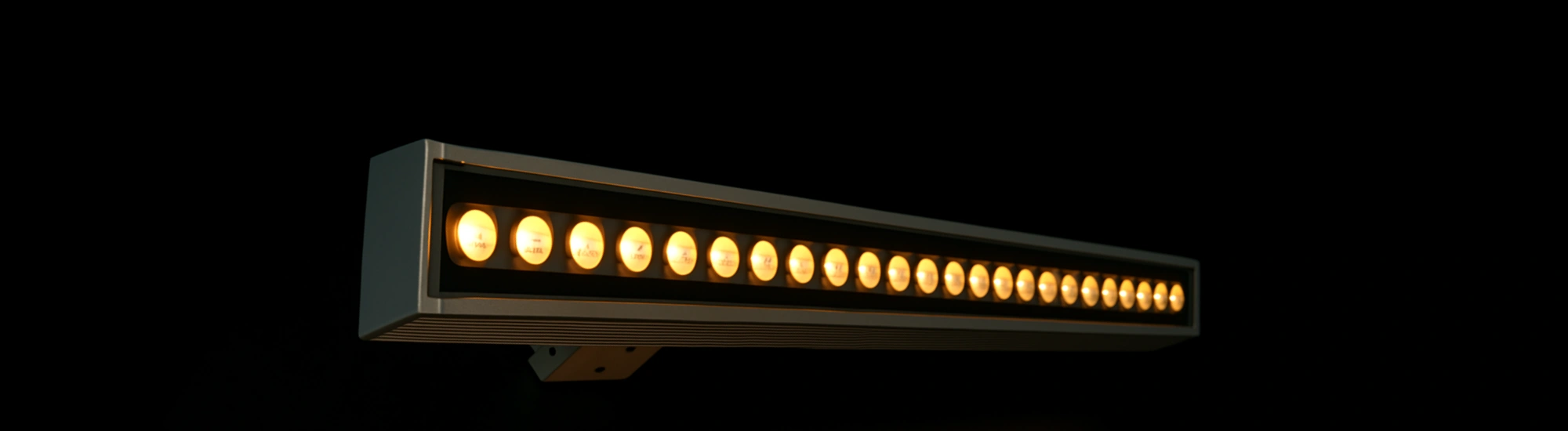

48V Warm White – Non-Pixel Wall Washer
High-efficiency, flicker-free warm lighting across extended runs.
Explore FeaturesOverview
Great for consistent warm lighting in large outdoor spaces or monuments.
Product Information
The non-pixel version ensures reliable warm white wash without data wiring. It runs on 48V, minimizing voltage drop and supporting longer installations like building exteriors, public walkways, or parking lot perimeters.
Gallery
Downloads
Specifications
| Feature | Value |
|---|---|
| Model | MECWW2323NP-48V |
| Wattage | 12W/15W/18W/24W/72W |
| Input Voltage | 48V DC (Customized) |
| CCT | WW |
| CRI | ≥90 |
| Beam Angle | 15°, 30°, 45° |
| Size | 1000MM (Customized) |
| Led Make | CREE / BLX / LUMI / OSRAM |
| LED Source | 5050 |
| Operating Temperature | 45°-50°C |
| Burning Hours | 40,000 + hours |
| IP Rating | IP65, IP66, IP67 |
| Driver | FULLHAM/PHILIPS/BAG |
| Protocol | NA |
| Warranty | 5 Years |
| Body Material | Aluminium |
| Current | 0.60A – 0.625A/MTR |
| Installation Type | Surface/Track/Pole/Recessed |
| Light Output Ratio | 70% |
