Overview
Best for architectural projects with long distances and pixel animations.
Product Information

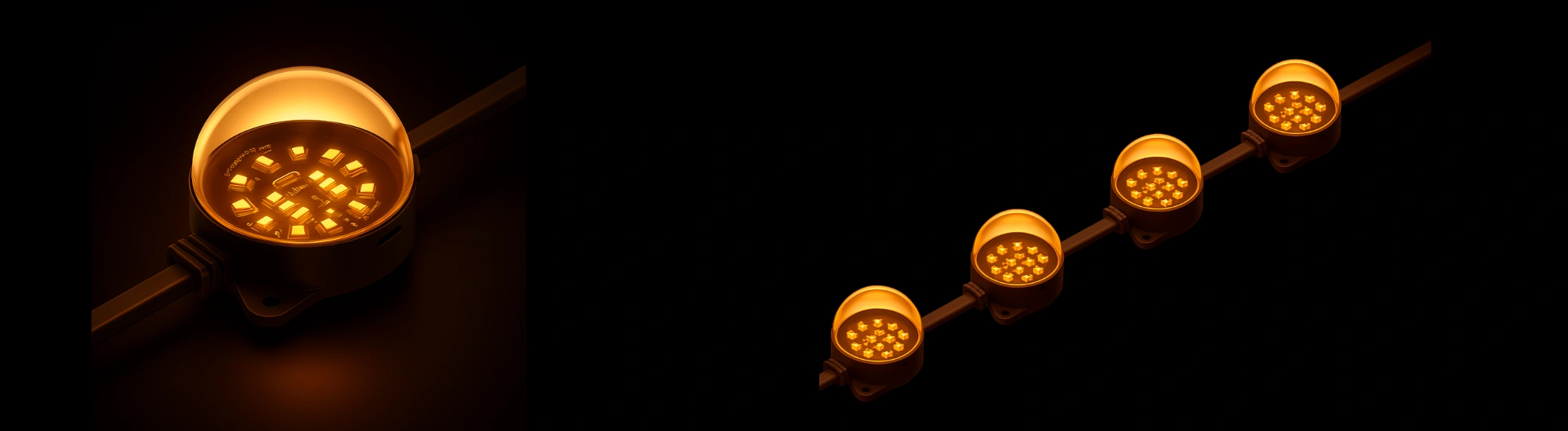

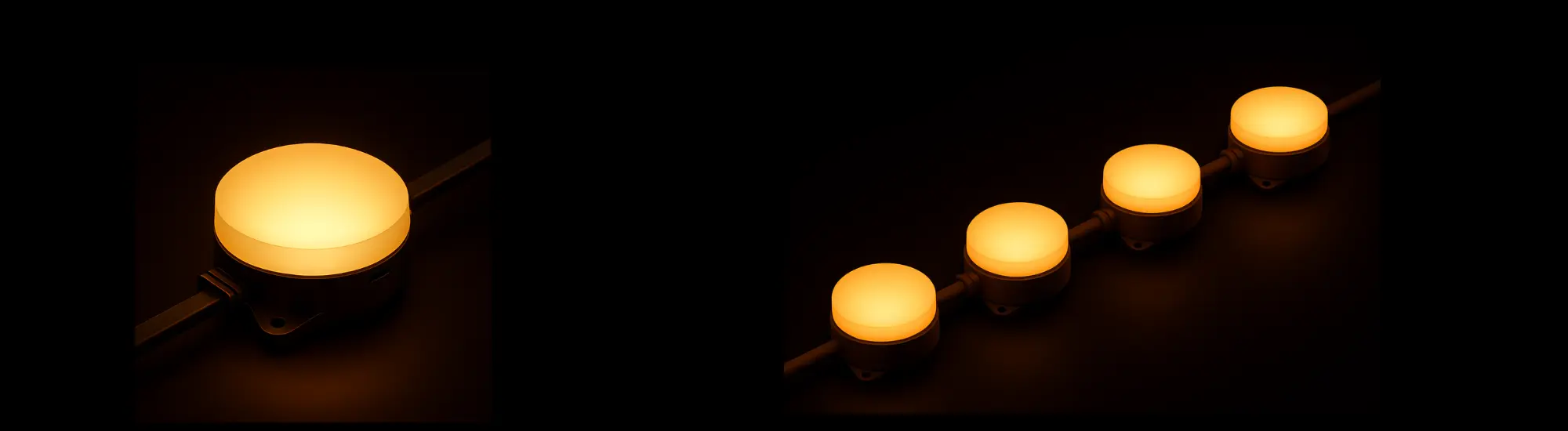

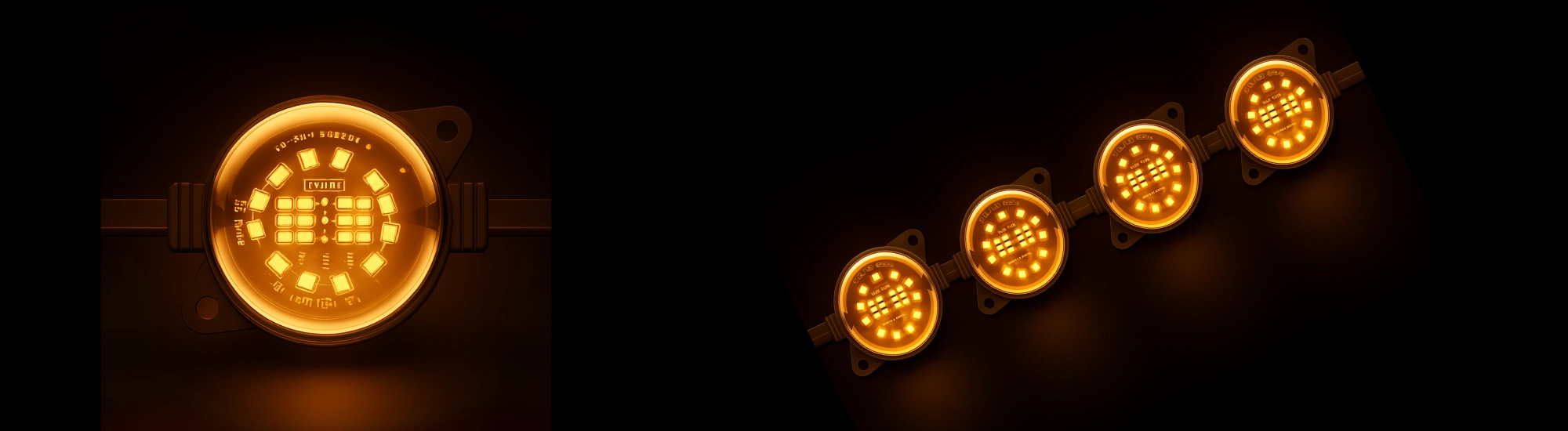

This 48V pixel-addressable Warm White light provides clean animation across wide façades or monuments. High voltage supports longer runs with less power drop, and pixel control enables tailored dimming and movement. Ideal for building wraps, event venues, and themed spaces where warm tone and control both matter.
Gallery
Downloads
Specifications
| Feature | Value |
|---|---|
| Model | MECWW412P-48V |
| Wattage | 4-20W/M |
| Input Voltage | 48V DC (Customized) |
| CCT | WW |
| CRI | ≥90 |
| Beam Angle | 120°-360° |
| Led Make | CREE / BLX / LUMI / OSRAM |
| LED Source | 5050 |
| Operating Temperature | 45°-50°C |
| Burning Hours | 40,000 + hours |
| IP Rating | IP66, IP67, IP68 |
| Driver | FULLHAM/PHILIPS/BAG |
| Protocol | DMX , SPI , ArtNET |
| Warranty | 5 Years |
| Body Material | Aluminium |
| Current | 0.60A – 0.625A/MTR |
| Cutting Intervals | 100MM |
| GRAY Scale | 16 Bits 65,536 |
| Grust Material | Polycarbonate / Silicone / Aluminum |
