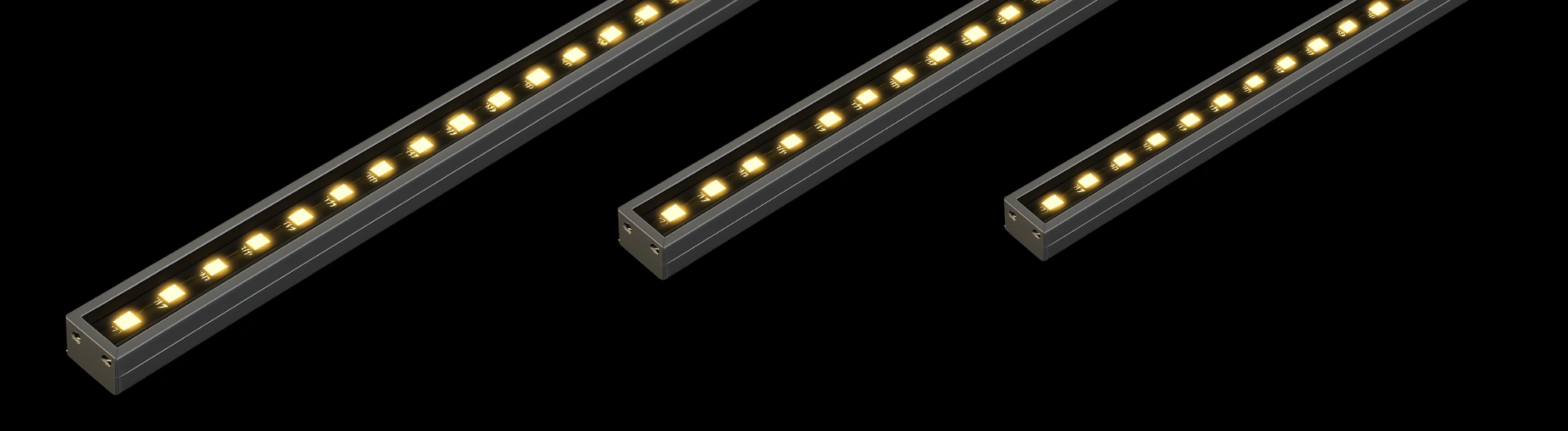

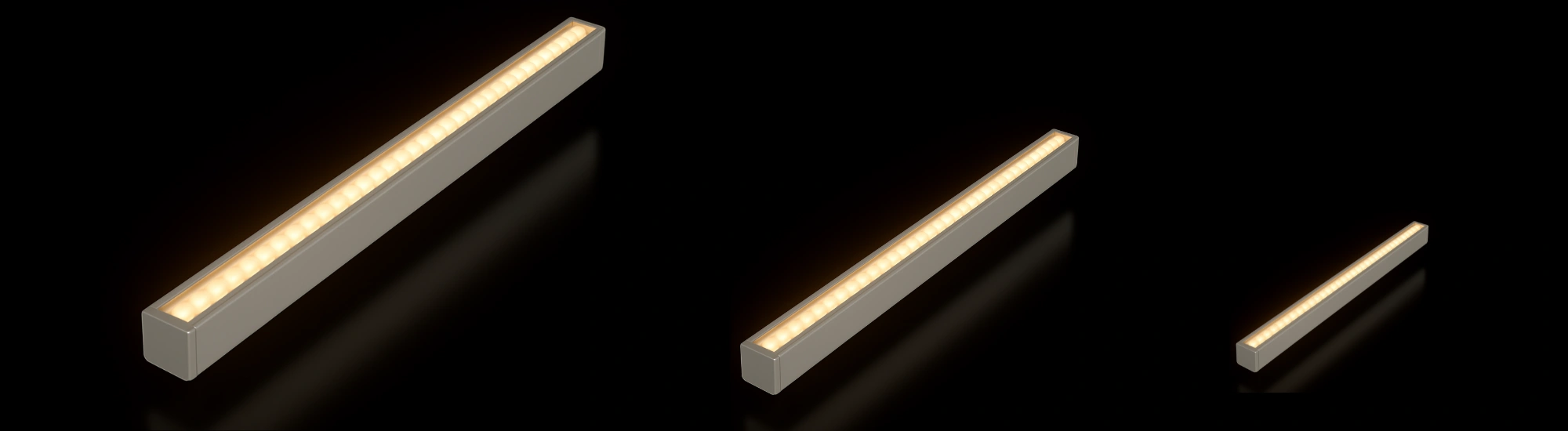

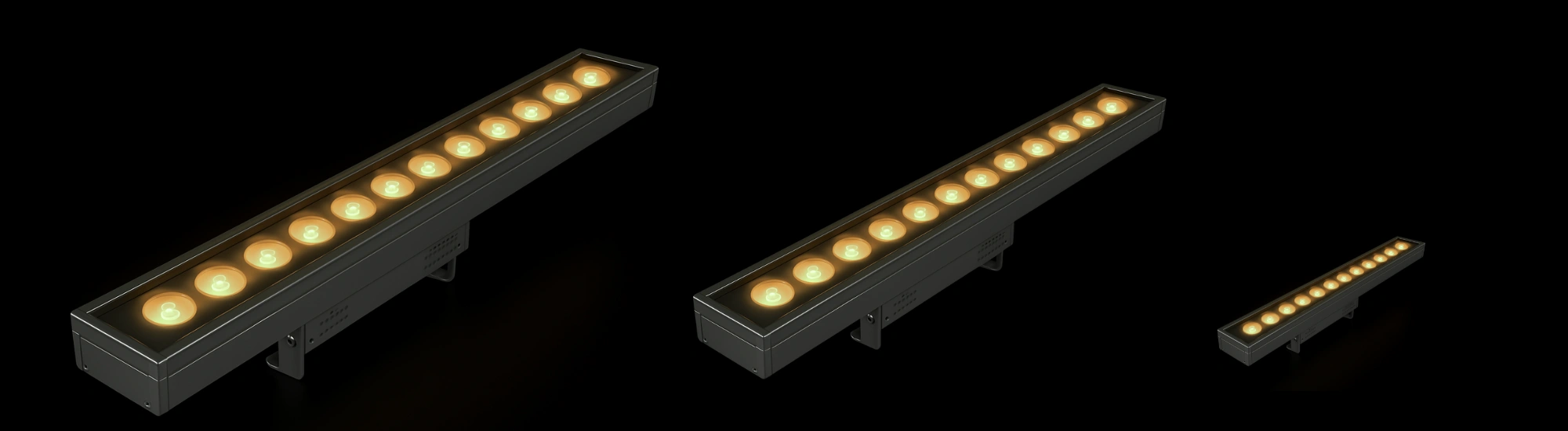

48V Warm White Pixel LED Bar
Long-distance pixel-controlled warm white lighting for hotels, corridors, and premium interiors.
Explore FeaturesOverview
Offers stable, flicker-free warm lighting with pixel effects over longer distances using 48V input.
Product Information
Powered by 48V, this pixel warm white LED bar supports smooth animations, fade effects, and smart dimming. Its higher voltage allows for extended runs with minimal voltage drop. Suitable for large hallways, lobbies, or banquet lighting, it brings both class and control to professional spaces.
Gallery
Downloads
Specifications
| Feature | Value |
|---|---|
| Model | MECWW122P-48V |
| Wattage | 14.5W/MTR |
| Input Voltage | 48V DC (Customized) |
| CCT | WW |
| CRI | ≥90 |
| Beam Angle | 120° |
| Dimensions | 750mm x 28mm x 50mm |
| Led Make | CREE / BLX / LUMI / OSRAM |
| LED Source | 5050 |
| Operating Temperature | 45°-50°C |
| Burning Hours | 40,000 + hours |
| IP Rating | IP65, IP66 |
| Driver | FULLHAM/PHILIPS/BAG |
| Protocol | DMX , SPI , ArtNET |
| Warranty | 5 Years |
| Body Material | Aluminium |
| Current | 0.60A – 0.625A/MTR |
| Control Channels | NA |
| Address Setting | Manual |
| LED Quantity | 36 LEDs |
| Cover | Square Diffuser |
