48V Warm White Pixel LED Panel
Long-range pixel-controlled warm light—ideal for larger panels or long-distance ceiling arrays.
Explore FeaturesOverview
Built for installations needing extended power range and pixel-dimmable white light
Product Information
With 48V support, this panel provides flicker-free warm lighting with addressable pixel segments. It reduces voltage drop across larger installations and is perfect for banquet halls, hotel lobbies, or modern co-working spaces using smart dimming zones.

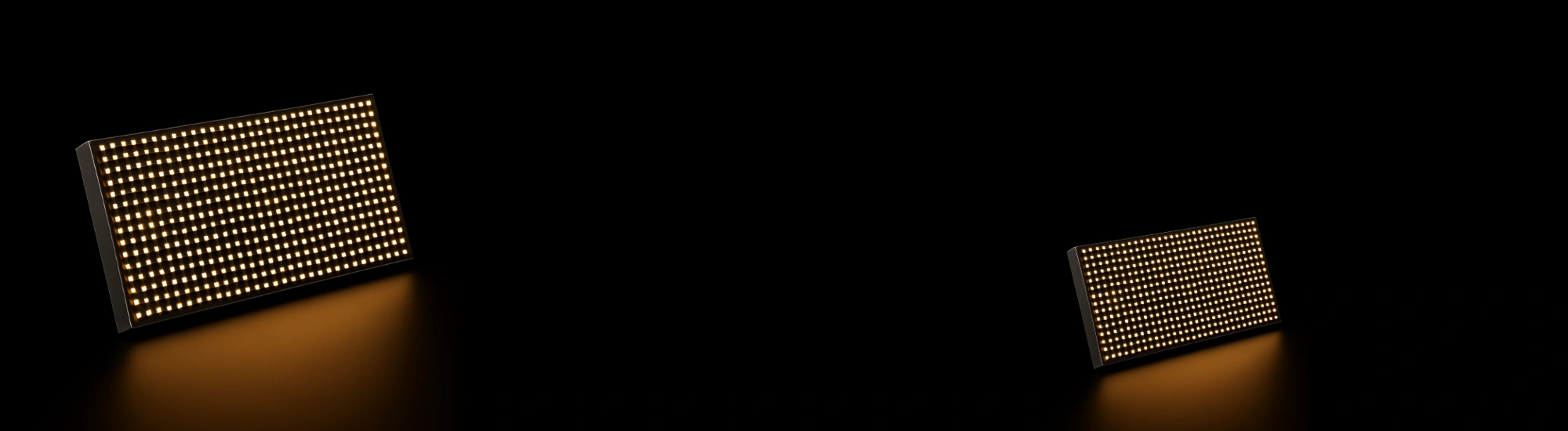

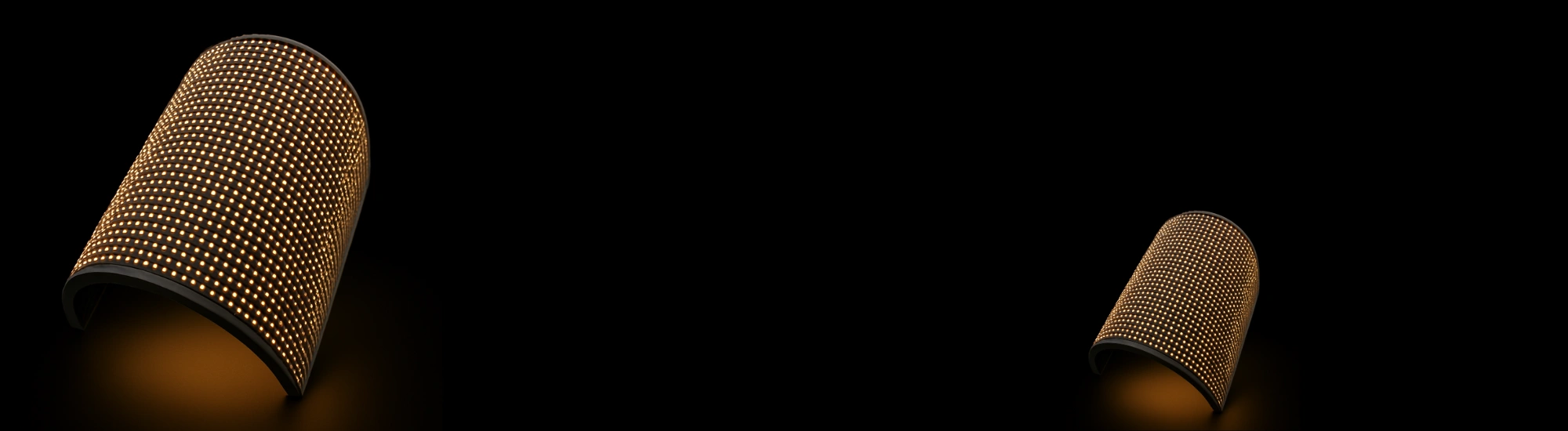

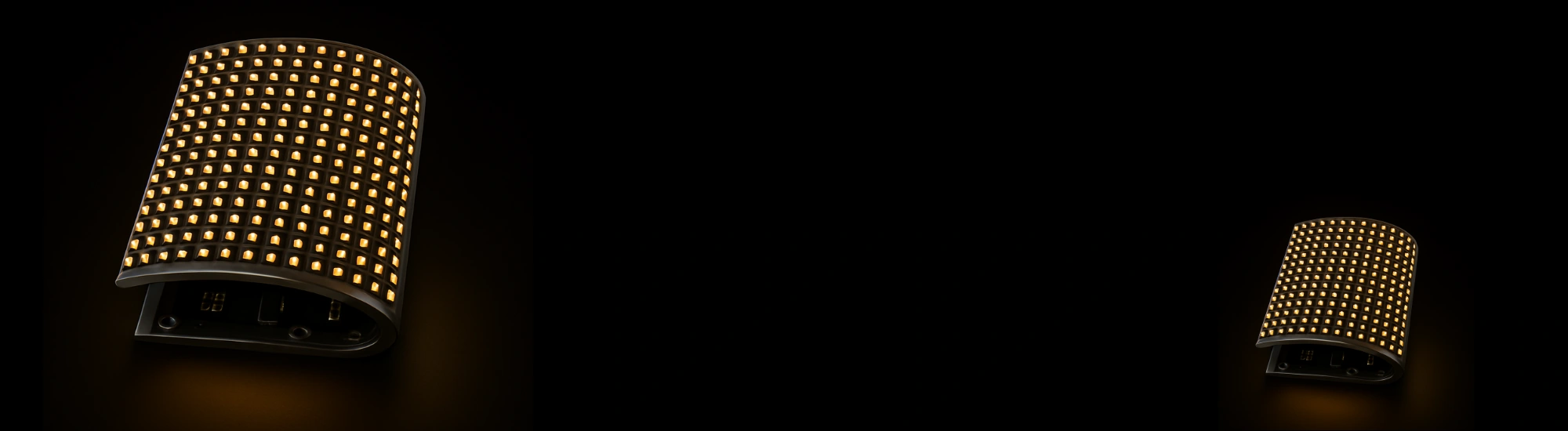

Gallery
Downloads
Specifications Table
| Feature | Value | Feature | Value |
|---|---|---|---|
| Product Code | MECWW1216P-48V | Power Consumption | Customized |
| Cutting Intervals | 100MM | Voltage | 48V |
| Wattage/Meter | 5W/4W | Current A/M | 0.30–0.31A/MTR |
| Lumens | 479 | Operating Temperature | 50°–60°C |
| Colour Temperature | WW | Max Length | 10–12 MTRS |
| Protocol | DMX , SPI , ArtNET | LED Source | 5050 |
| LED Life Time | 50,000 Hrs | IP Rating | IP65, IP66 |
| Size | 300*300MM , 600*600MM | Pixel | 10MTR |
| CRI | ≥90 |
