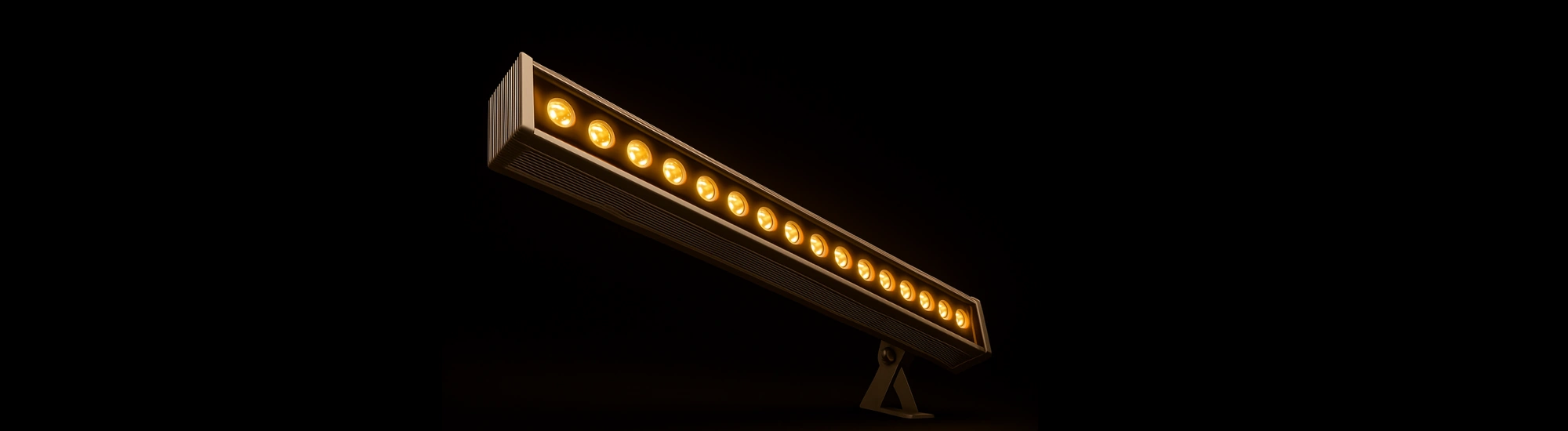

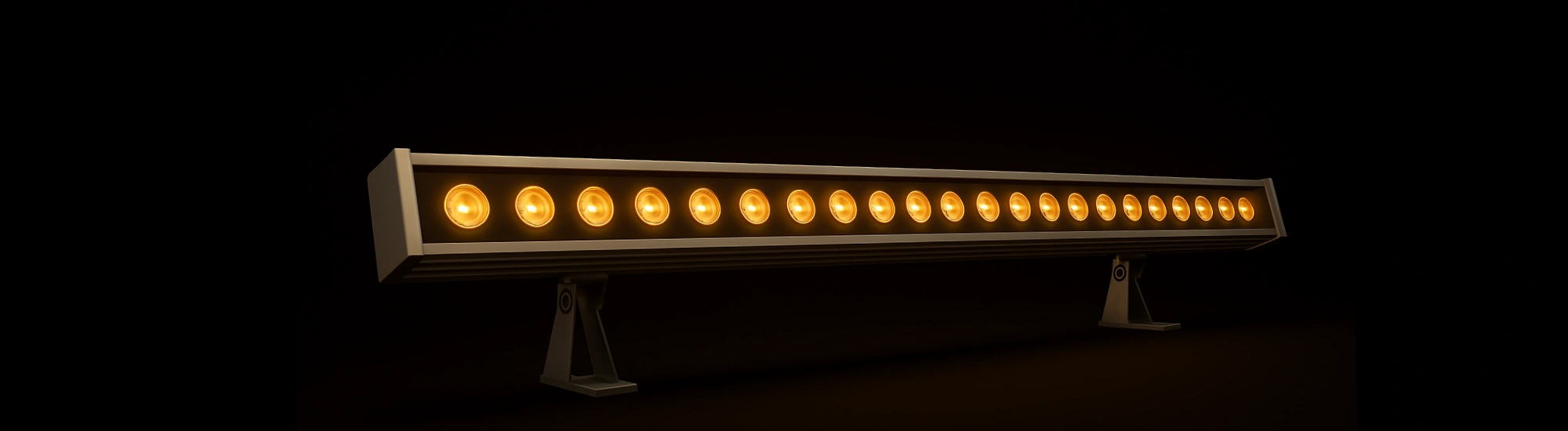

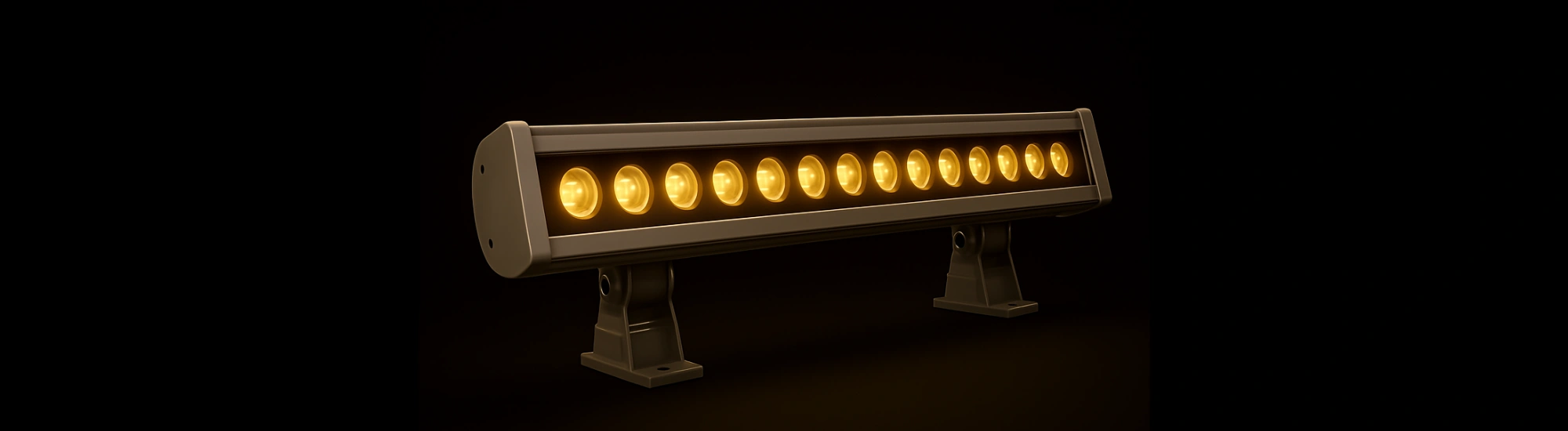

48V RGB – Pixel Wall Washer
Bright, pixel-controlled RGB colors across long installations with low voltage drop.
Explore FeaturesOverview
For colorful effects over wide surfaces such as stadiums or digital sculptures.
Product Information
This 48V RGB pixel wall washer supports animated patterns, gradients, and live color changes through SPI or DMX control. Designed for commercial visuals, theme parks, or massive architectural displays.
Gallery
Downloads
Specifications
| Feature | Value |
|---|---|
| Model | MECWW2323P-48V |
| Wattage | 12W/15W/18W/24W/72W |
| Input Voltage | 48V DC (Customized) |
| CCT | WW |
| CRI | ≥90 |
| Beam Angle | 15°, 30°, 45° |
| Size | 1000MM (Customized) |
| Led Make | CREE / BLX / LUMI / OSRAM |
| LED Source | 5050 |
| Operating Temperature | 45°-50°C |
| Burning Hours | 40,000 + hours |
| IP Rating | IP65, IP66, IP67 |
| Driver | FULLHAM/PHILIPS/BAG |
| Protocol | DMX , SPI , ArtNET |
| Warranty | 5 Years |
| Body Material | Aluminium |
| Current | 0.60A – 0.625A/MTR |
| Installation Type | Surface/Track/Pole/Recessed |
| Light Output Ratio | 70% |
